Sub Power Window Switch (Passenger)

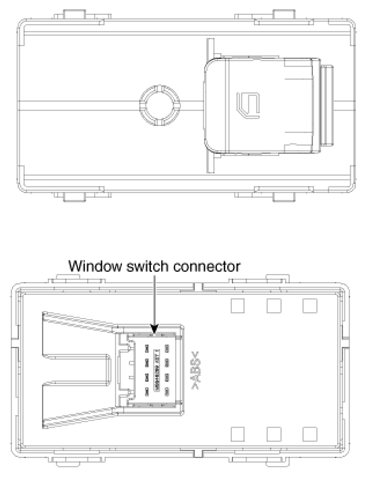

G16781077Courtesy of HYUNDAI MOTOR AMERICA
Window switch connector Pin No Description
G16781078Courtesy of HYUNDAI MOTOR AMERICA
 1 Window motor (Up)
2 -
3 Window motor (Down)
4 Driver side switch window motor (Up)
5 Symbol lamp power
6 Window lock power
7 Ground
8 Driver side switch window motor (Down)
