[Bank 1/Sensor 1]

  1. Disconnect the battery (-) terminal.

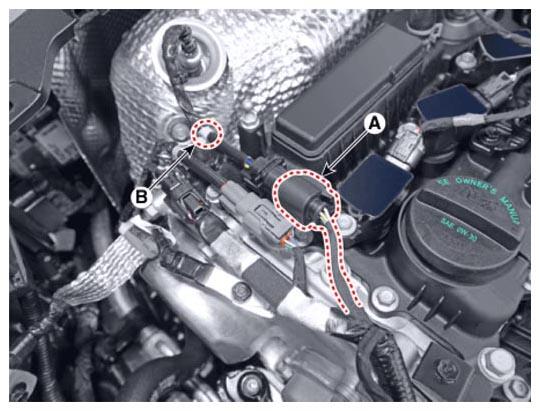

  2. Disconnect the heated oxygen sensor connector (A), and then remove the clip (B).
    G16772058Courtesy of HYUNDAI MOTOR AMERICA

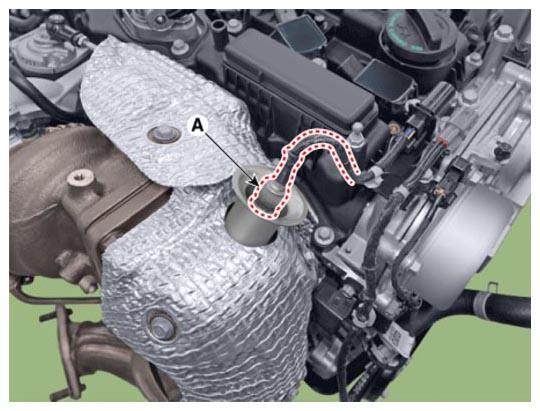

  3. Remove the heated oxygen sensor (A).

    Tightening Torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)

G16772059Courtesy of HYUNDAI MOTOR AMERICA
