[Bank 1/Sensor 2]

  1. Disconnect the battery (-) terminal.

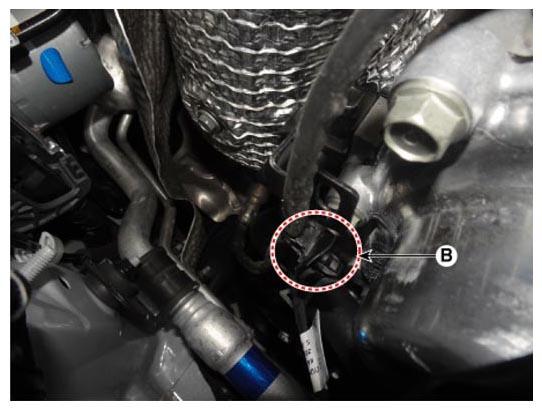

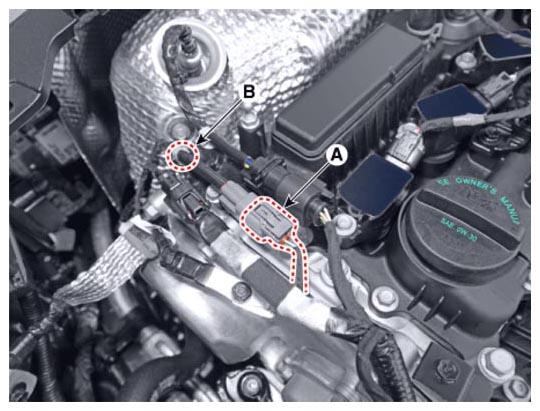

  2. Disconnect the heated oxygen sensor connector (A), and then remove the clip (B).
    G16772060Courtesy of HYUNDAI MOTOR AMERICA
    G16772061Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.

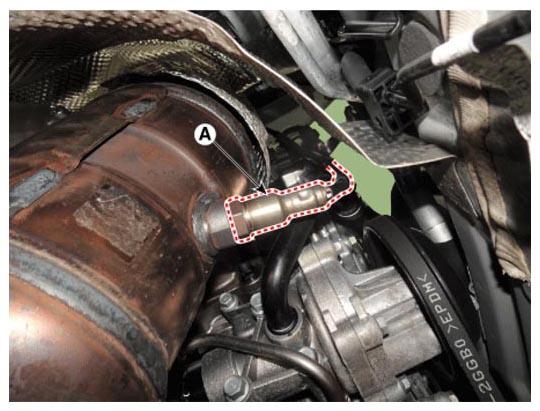

  4. Remove the heated oxygen sensor (A).

    Tightening Torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)

    G16772062Courtesy of HYUNDAI MOTOR AMERICA
