Repair Procedures: Installation

NOTE:

• When installing the CVVD actuator the shaft gear do not fit properly, rotate the CVVD actuator in both directions and installing it naturally.

  (Do not impact when installing the component.)

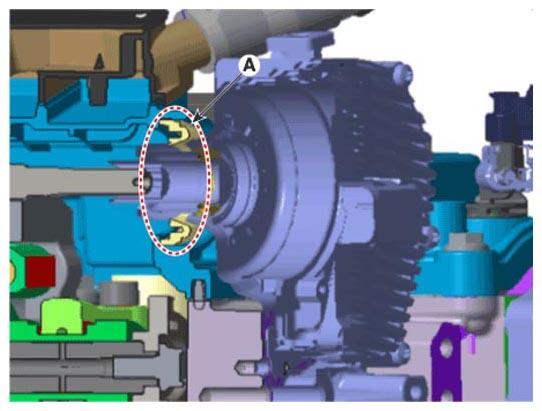

• Do not damage to the component when instating the cylinder head cover oil seal (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

• Install the component with the specified torques.
• Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
