Components Location

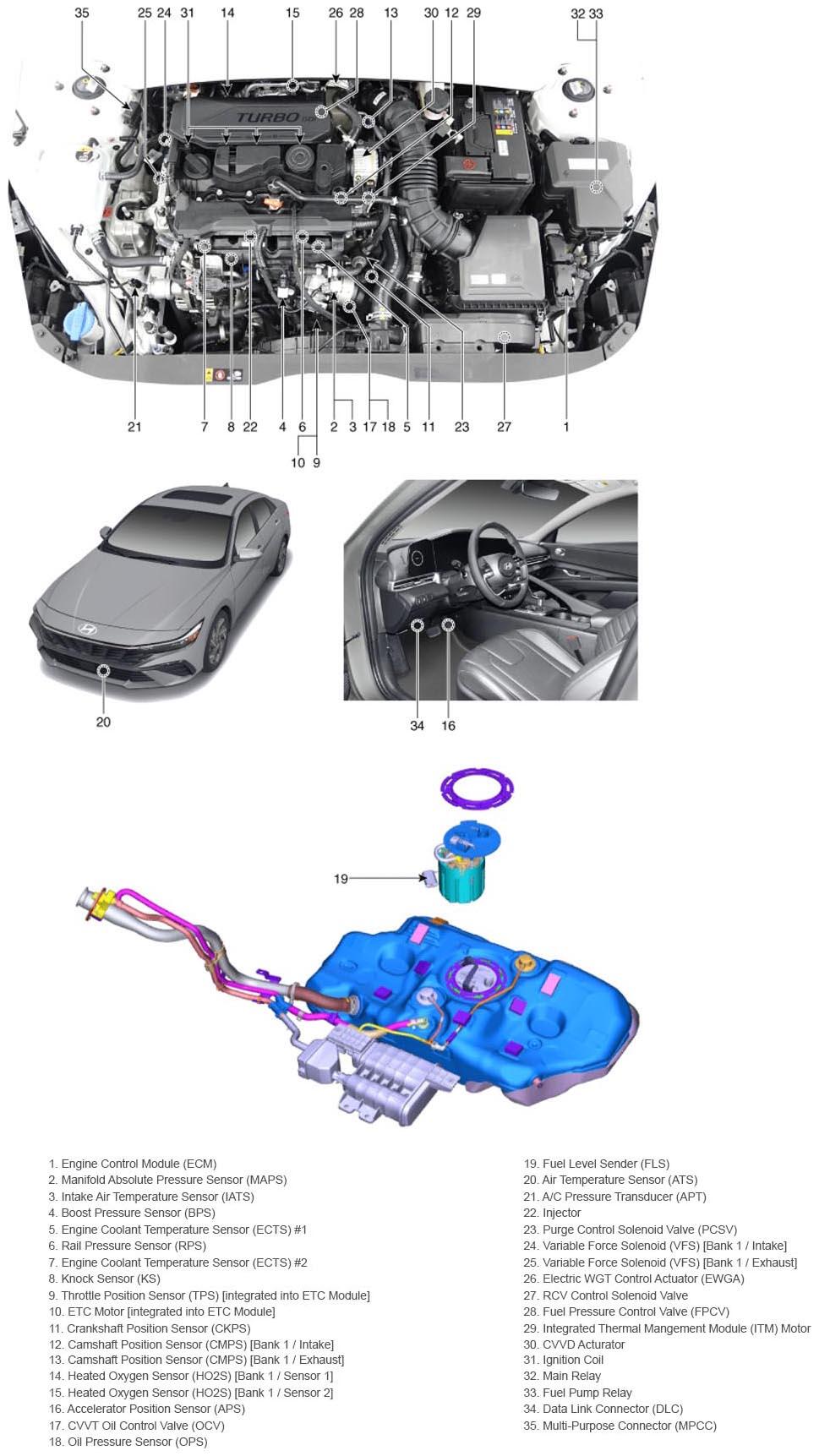

G16687222Courtesy of HYUNDAI MOTOR AMERICA

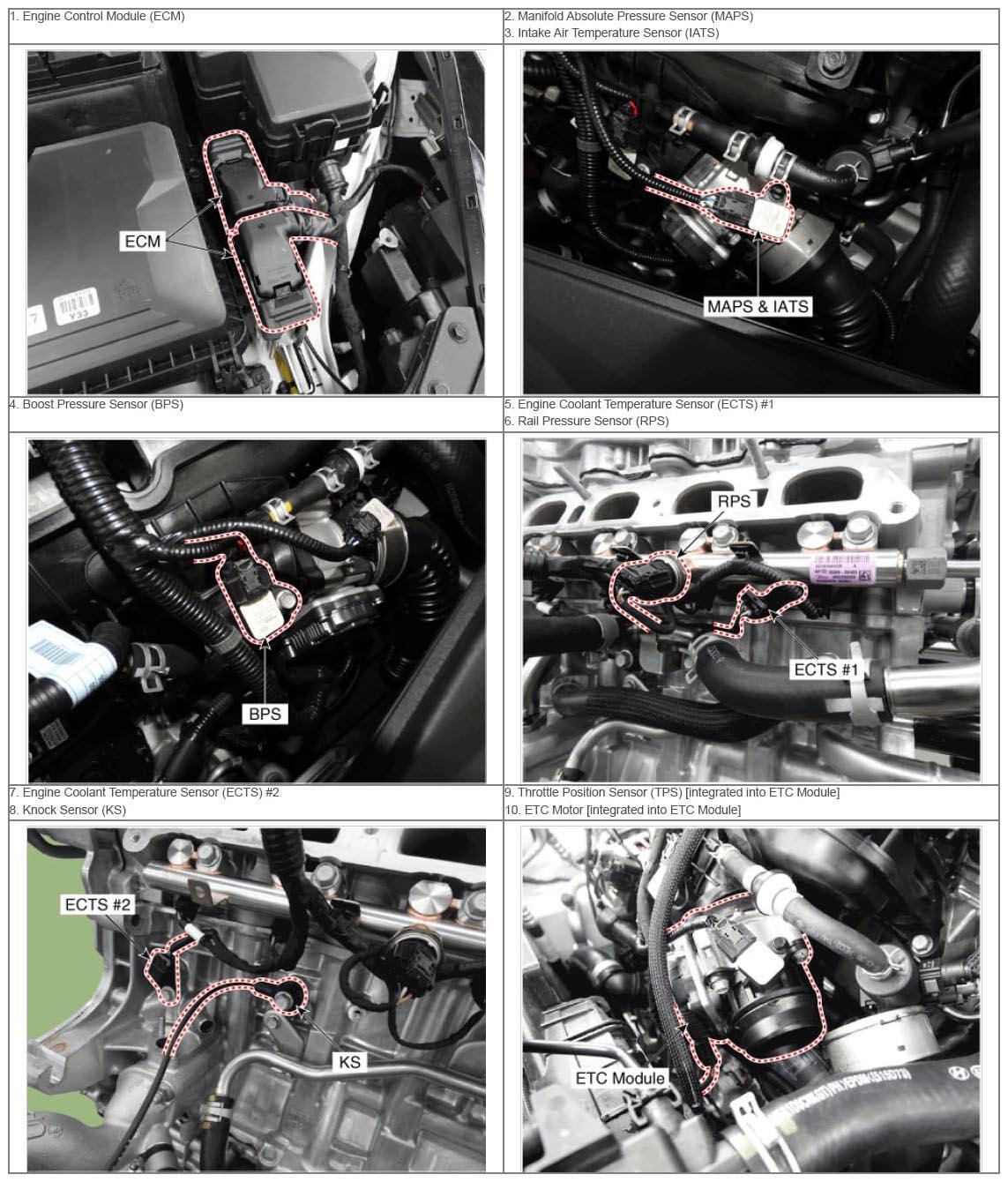

G16687223Courtesy of HYUNDAI MOTOR AMERICA

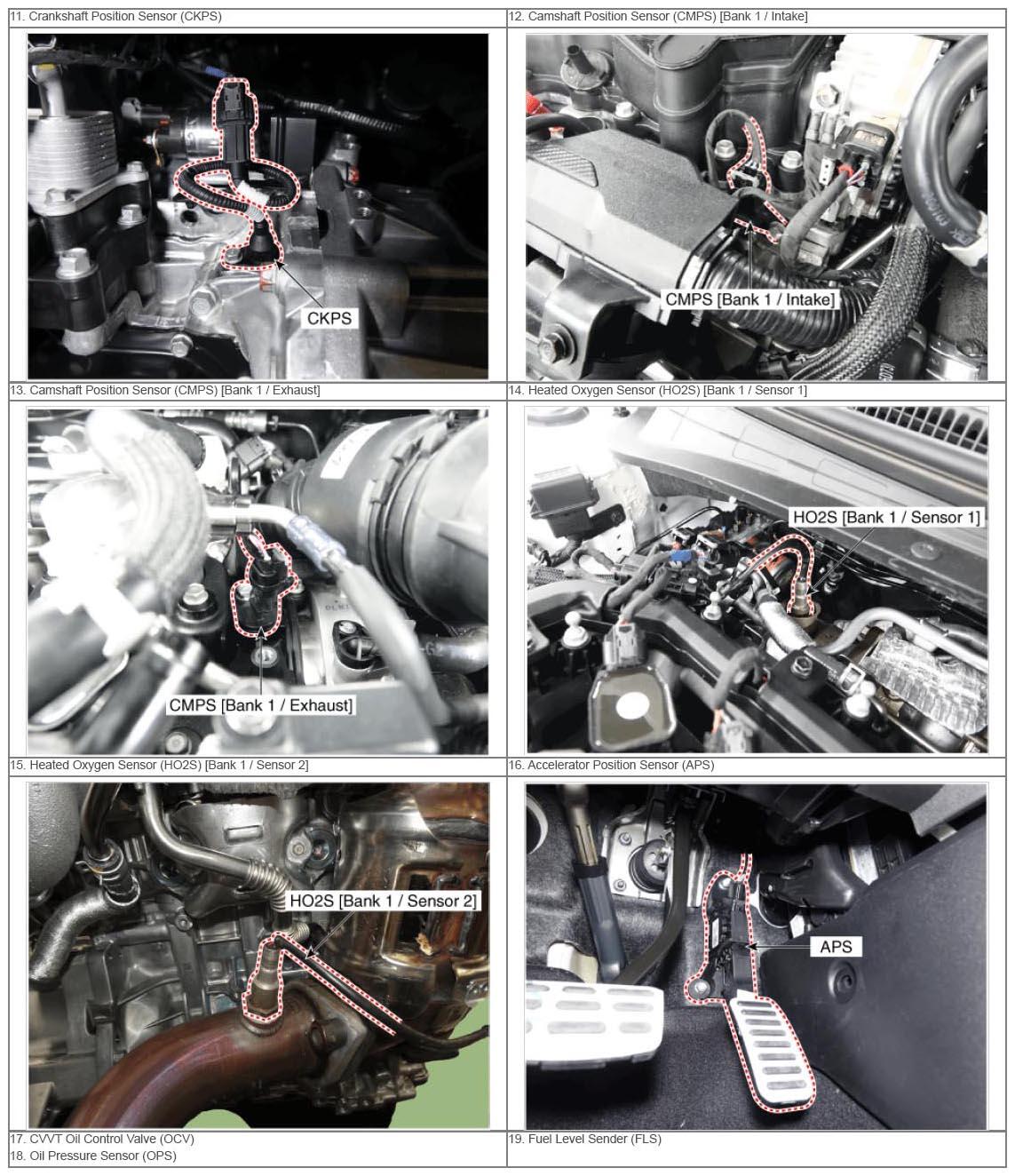

G16687224Courtesy of HYUNDAI MOTOR AMERICA

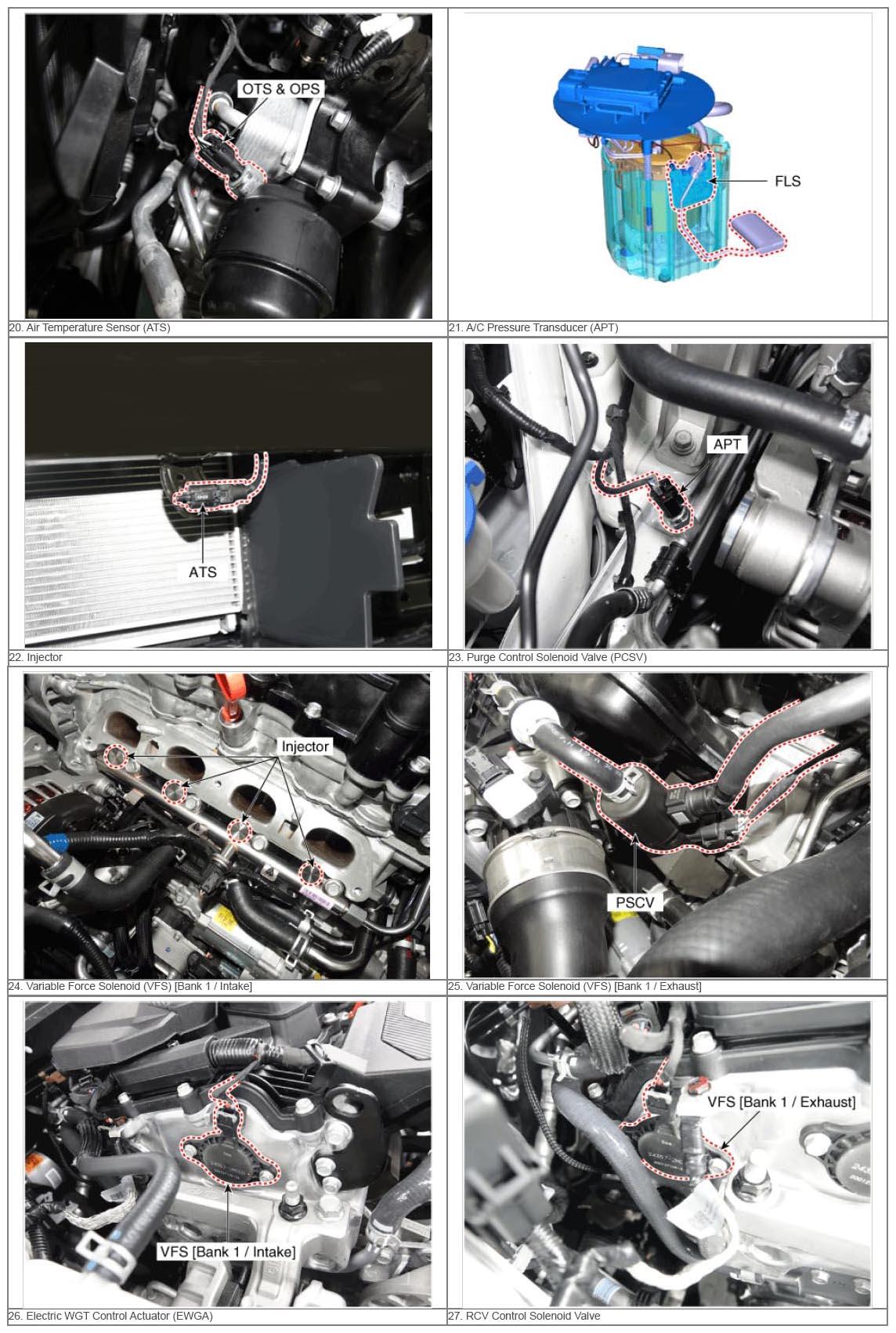

G16687225Courtesy of HYUNDAI MOTOR AMERICA

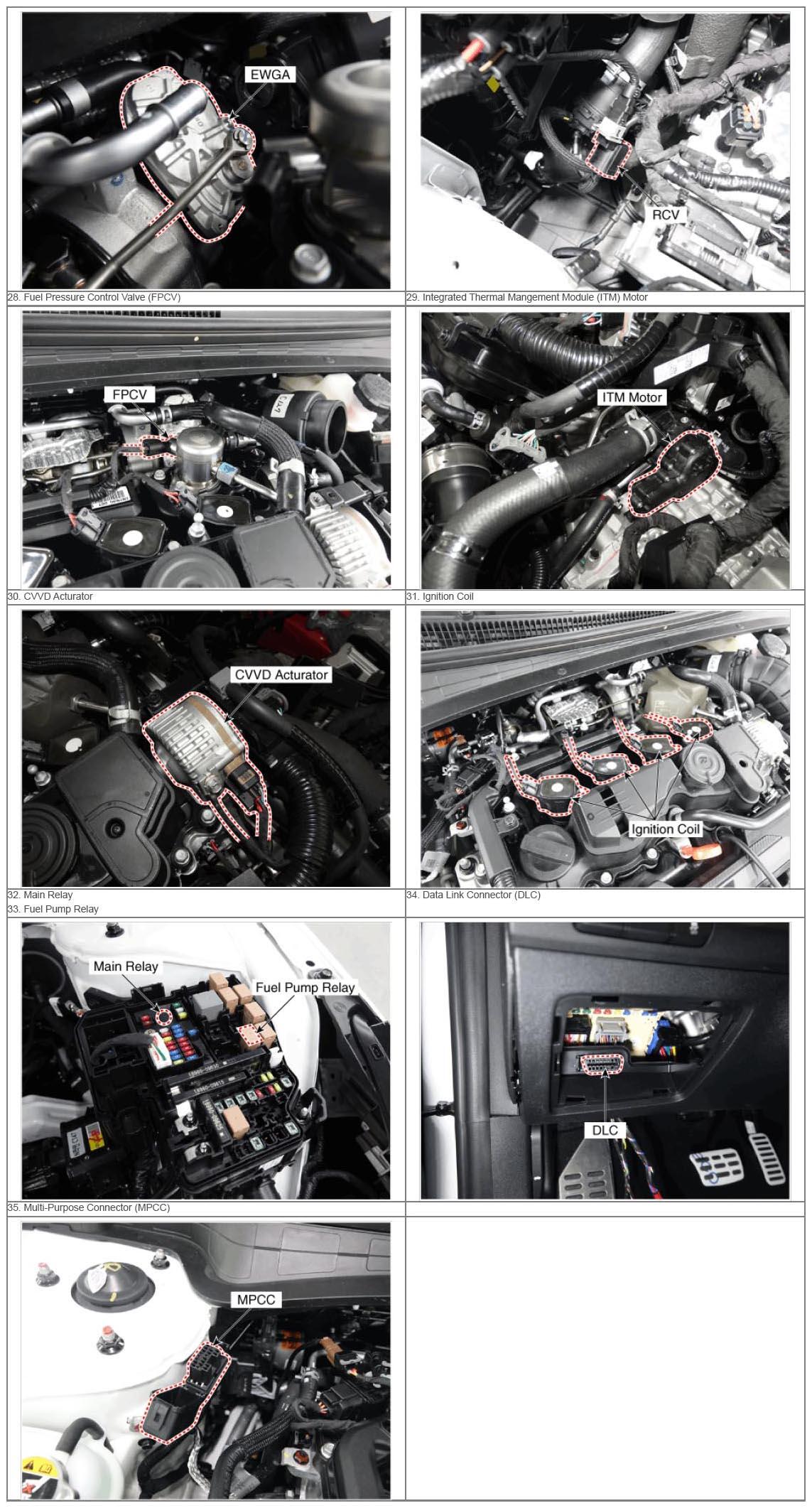

G16687226Courtesy of HYUNDAI MOTOR AMERICA

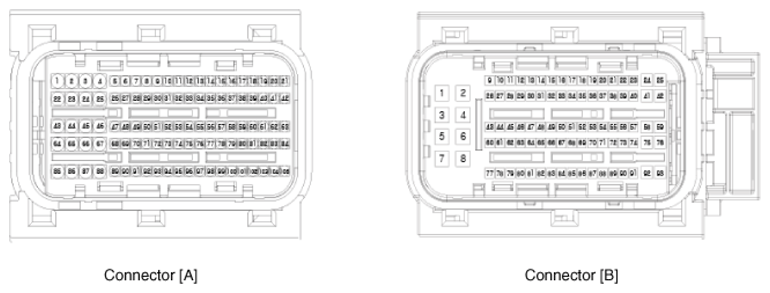

G16687227Courtesy of HYUNDAI MOTOR AMERICA
