Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

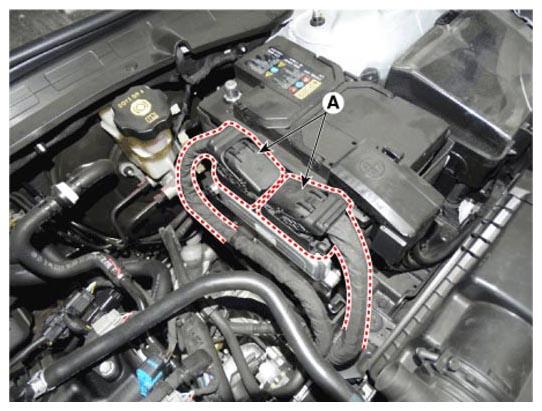

  2. Disconnect the ECM Connector (A).
    G16687228Courtesy of HYUNDAI MOTOR AMERICA

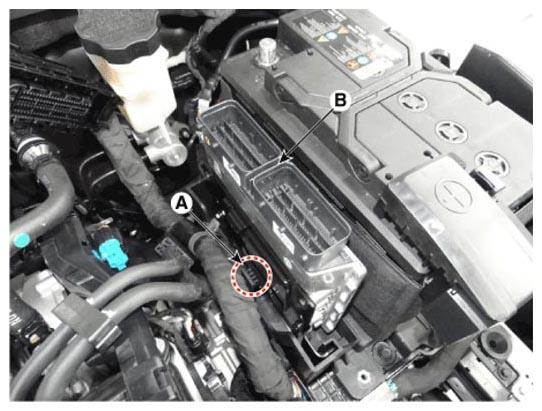

  3. Remove the ECM (B) after releasing the fixing hooks (A).
    G16687229Courtesy of HYUNDAI MOTOR AMERICA

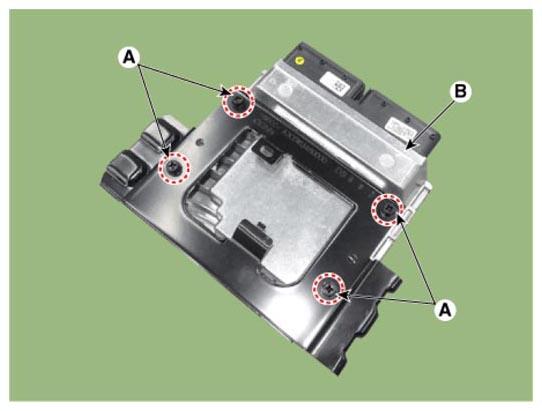

  4. Remove the ECM (B) after loosening the mounting bolts (A).

    ECM Mounting bolt:

    6.7 - 8.3 N.m (0.7 - 0.85 kgf.m, 5.1 - 6.1 lb-ft)

    G16687230Courtesy of HYUNDAI MOTOR AMERICA
