Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Release the residual pressure in fuel line.CAUTION:
- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the delivery pipe & injector assembly. (Refer to Fuel Delivery System - "DELIVERY PIPE
")
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

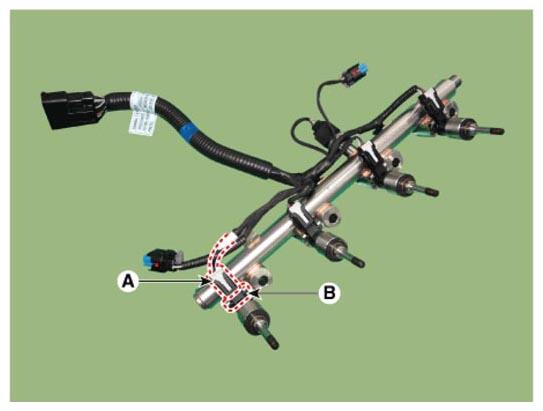

- Remove the connector (A) and fixing clip (B), and then separate the injector from the delivery pipe.
