Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

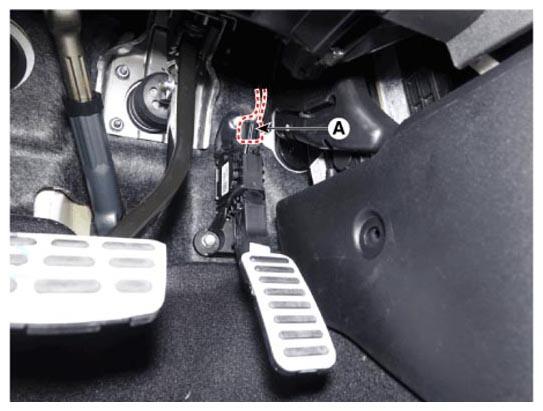

  2. Disconnect the accelerator position sensor connector (A).
    G16772245Courtesy of HYUNDAI MOTOR AMERICA

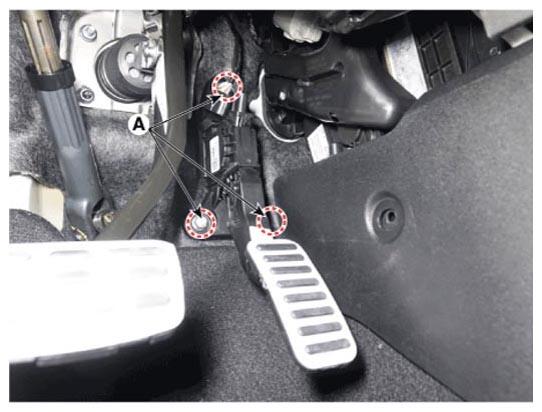

  3. Remove the installation nuts (A) and then remove the accelerator pedal module.

    Tightening torque:

    12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)

    G16772246Courtesy of HYUNDAI MOTOR AMERICA
