Components And Components Location: Component

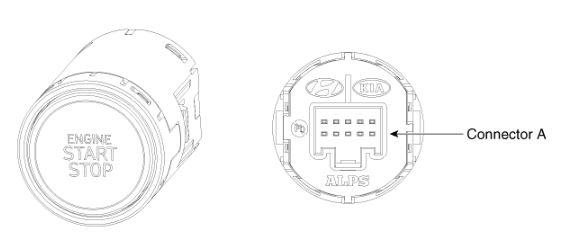

G15480009Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin NO Function
G15480010Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch 1_output
2 -
3 SSB symbol ILL (+)
4 Immobilizer antenna power
5 -
6 Ground
7 SSB Switch 2_output
8 SSB symbol ILL (-)
9 -
10 Immobilizer antenna ground
