Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad air vent [RH]. (Refer to Body - "CRASH PAD AIR VENT ")

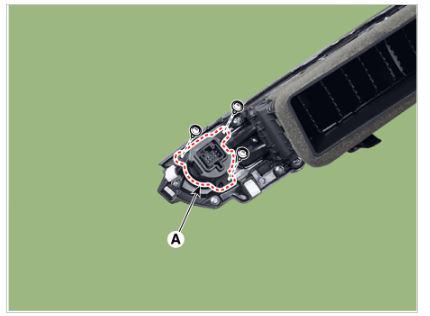

  3. Remove the start/stop button (A) after removing the screws.
    G15480011Courtesy of HYUNDAI MOTOR AMERICA
