CVVT Oil Control Valve [Bank 1/Exhaust]
- Disconnect the battery (-) terminal.
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - "Cylinder Head Cover ")

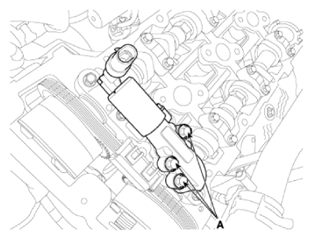

- Remove the installation bolt (A), and then remove the valve from the engine.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
