Repair Procedures: Disassembly

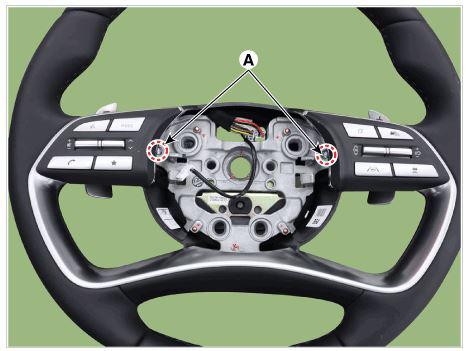

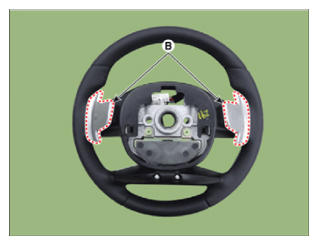

  1. Remove the screw (A) and then separate the paddle shifter (B).
    G15477995Courtesy of HYUNDAI MOTOR AMERICA
    G15477996Courtesy of HYUNDAI MOTOR AMERICA

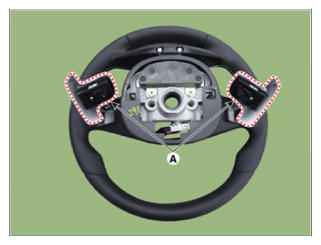

  2. Disconnect the paddle shifter (A) after disconnecting the connector.
    G15477997Courtesy of HYUNDAI MOTOR AMERICA

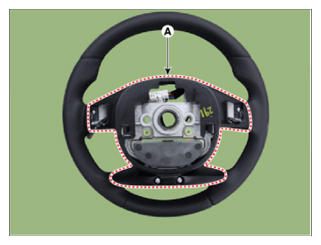

  3. Remove the lower cover (A) after removing the screws.
    G15477998Courtesy of HYUNDAI MOTOR AMERICA

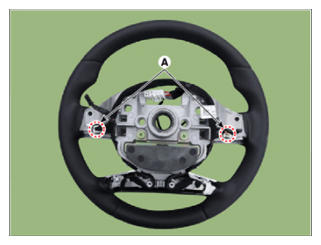

  4. Disconnect the remote control switch connector (A).
    G15477999Courtesy of HYUNDAI MOTOR AMERICA

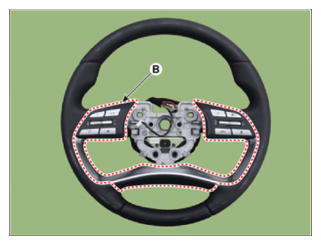

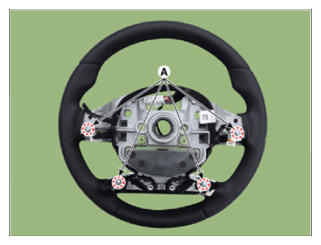

  5. Remove the remote control switch (B) after removing the screw (A).
    G15478000Courtesy of HYUNDAI MOTOR AMERICA
    G15478001Courtesy of HYUNDAI MOTOR AMERICA

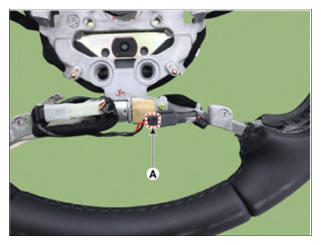

  6. Disconnect the haptic motor connector (A).
    G15478002Courtesy of HYUNDAI MOTOR AMERICA

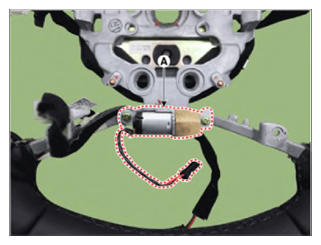

  7. Remove the haptic motor (A) after removing the screws.
    G15478003Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the steering wheel dynamic damper after removing the bolts.

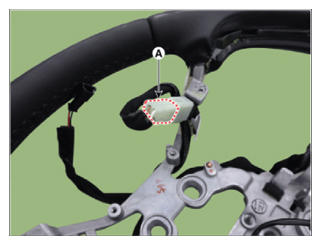

  9. Disconnect the heated steering wheel connector (A).
    G15478004Courtesy of HYUNDAI MOTOR AMERICA

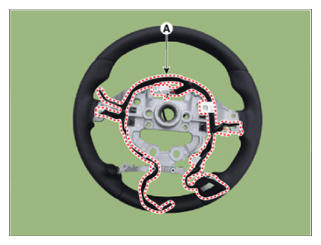

  10. Remove the steering wheel extension wiring (A).
    G15478005Courtesy of HYUNDAI MOTOR AMERICA
