Repair Procedures: Installation

Install the wheel and tire (A).

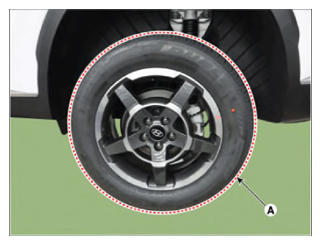

[Front]

Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA
Tighten the hub nuts as follows.
Tightening torque:

107.9 - 127.5 N-m (11.0 - 13.0 kgf-m, 79.6 - 94.0 lb-ft)
CAUTION:
- When using an impact gun, final tightening torque should be checked using a torque wrench.
Fig 1: Hub Nuts Tightening Sequence (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Hub Nuts Tightening Sequence (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
