Repair Procedures: Removal

CAUTION:

Carefully install the clamp not to damage the hose.
Install the clamp in a correct direction not to be interfered with other parts.
After the installation, start the engine and then check if there are any leakages from the hose.
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift. (Refer to General Information - "LIFT AND SUPPORT POINTS ")

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

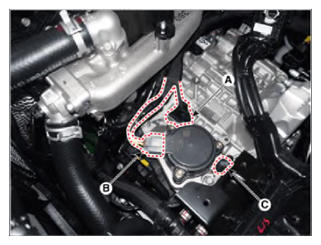

Disconnect the main connector (A), electronic shift actuator connector (B) and position sensor connector (C).

Courtesy of HYUNDAI MOTOR AMERICA

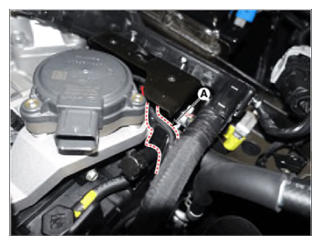

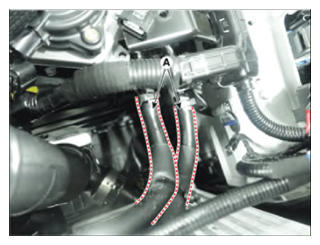

Disconnect the wiring bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

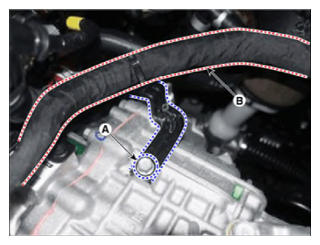

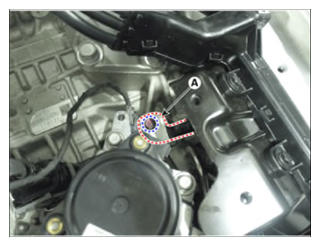

Remove the bolt (A) and then separate the wiring (B).

Courtesy of HYUNDAI MOTOR AMERICA

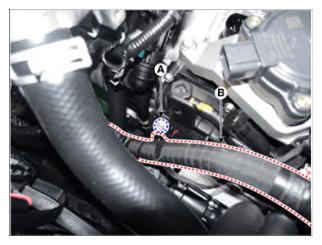

Loosen the bolt (A) and then separate the wiring (B).

Courtesy of HYUNDAI MOTOR AMERICA

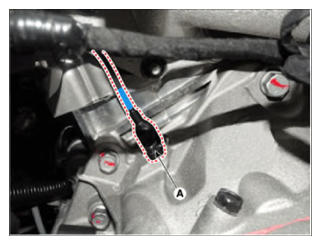

Remove the ground line (A).

Courtesy of HYUNDAI MOTOR AMERICA
Separate the ATF cooler hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the CKP sensor (A) after loosening the bolt.

Courtesy of HYUNDAI MOTOR AMERICA

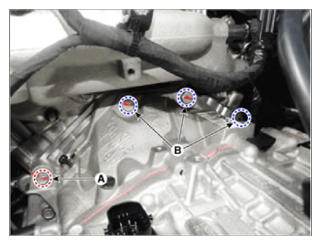

Remove the transaxle upper mounting bolts (A, B).
Tightening torque:
1. 32.4 - 49.0 N.m (3.3 - 5.0 kgf.m, 23.9 - 36.2 lb-ft)
2. 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

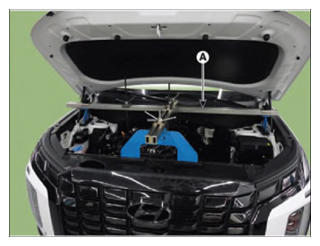

Assemble the engine support fixture use a (Beam SST No..: 09200 - 3N000, Supporter SST No..: 09200-2S000, Adaptor SST No..: 09200-2W000).
Using the engine support fixture, hold the engine and transaxle assembly safely.

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- After installing SST, check that the tightening nuts are surely tightened.

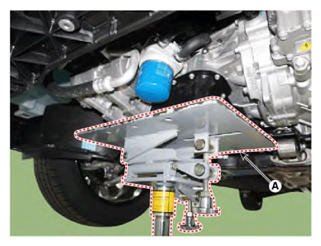

- Support the jack (A) in the lower part of the engine safely when working underside of the transaxle.
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle mounting bracket bolts (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

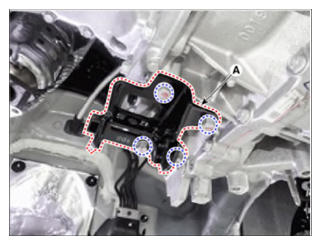

Loosen the transaxle support bracket mounting bolts and then removing the transaxle support bracket (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgfm, 43.4 - 57.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the front sub frame.
(Refer to Suspension System - "FRONT SUB FRAME ")
Remove the driveshaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")
In case of 4WD vehicle, remove the transfer assembly.
(Refer to 4 Wheel Drive System- "TRANSFER ASSEMBLY ")

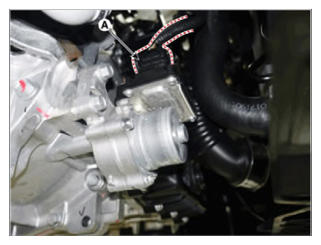

Disconnect the EOP (Electronic Oil Pump) connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

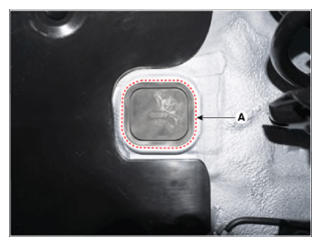

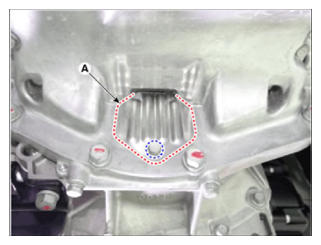

Remove the dust cover (A).
Tightening torque:

39.2 - 46.1 N.m (1.0 - 1.2 kgf.m, 28.9 - 33.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

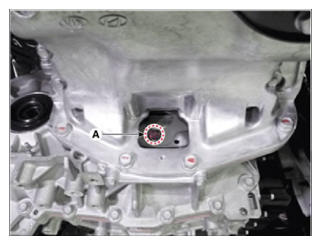

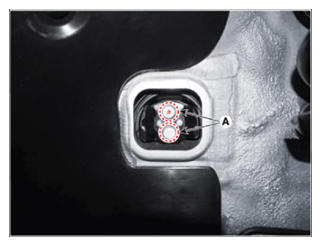

Remove the torque converter mounting bolts (A) by rotating the crankshaft.
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf-m, 33.3 - 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

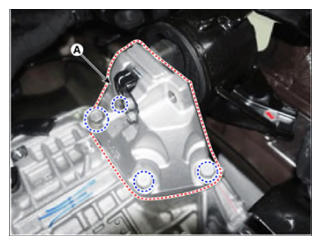

Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgfm, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Support the transaxle safely with a jack.

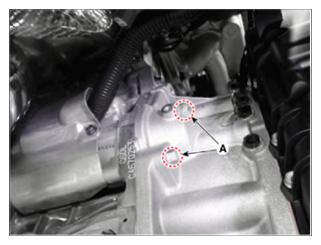

Remove the starter mounting bolts (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

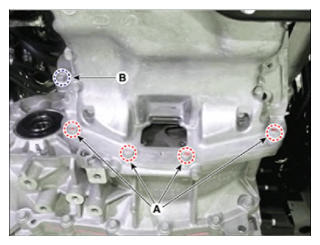

Loosen the transaxle lower mounting bolts (A, B).
Tightening torque:
1. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
2. 78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
After separating the transaxle from the engine, remove the transaxle by lowering the jack slowly.
NOTE:
- Be careful not to damage other nearby systems or parts when removing the transaxle assembly.
