Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
  2. Remove the air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

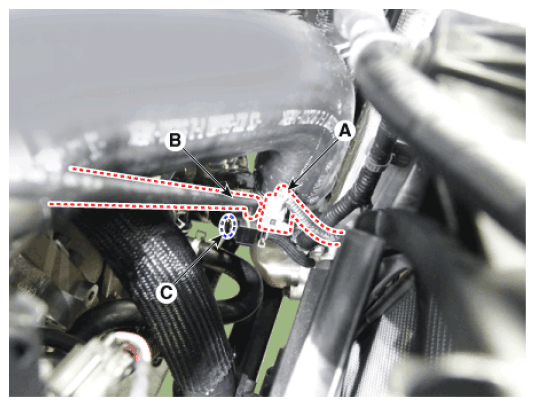

  3. Disconnect the RCV control solenoid valve connector (A), RCV hoses (B), and then loosening the installing bolt (C).
    G16742862Courtesy of HYUNDAI MOTOR AMERICA

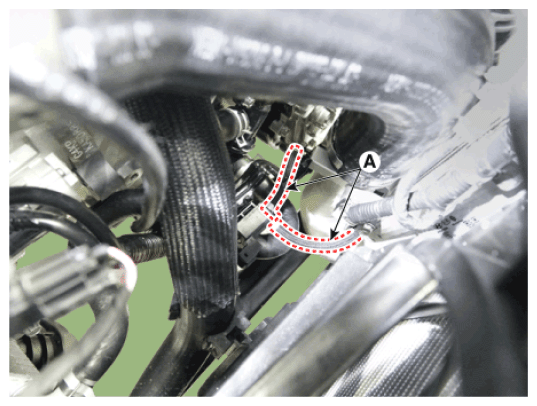

  4. Disconnect the RCV hose (A), and remove the RCV control solenoid valve.
    G16742863Courtesy of HYUNDAI MOTOR AMERICA
    G16742864Courtesy of HYUNDAI MOTOR AMERICA
