Components Location

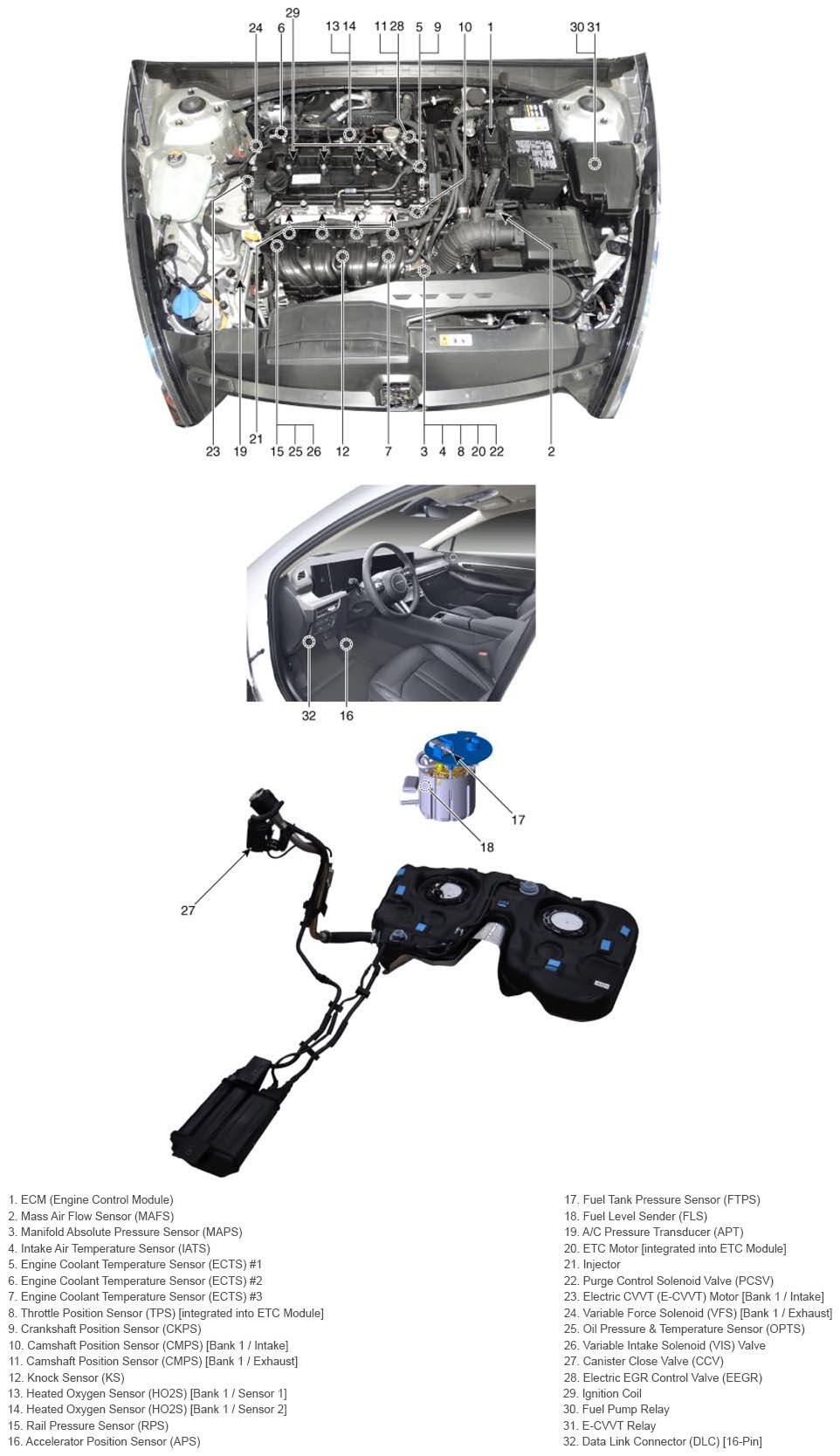

G16734189Courtesy of HYUNDAI MOTOR AMERICA

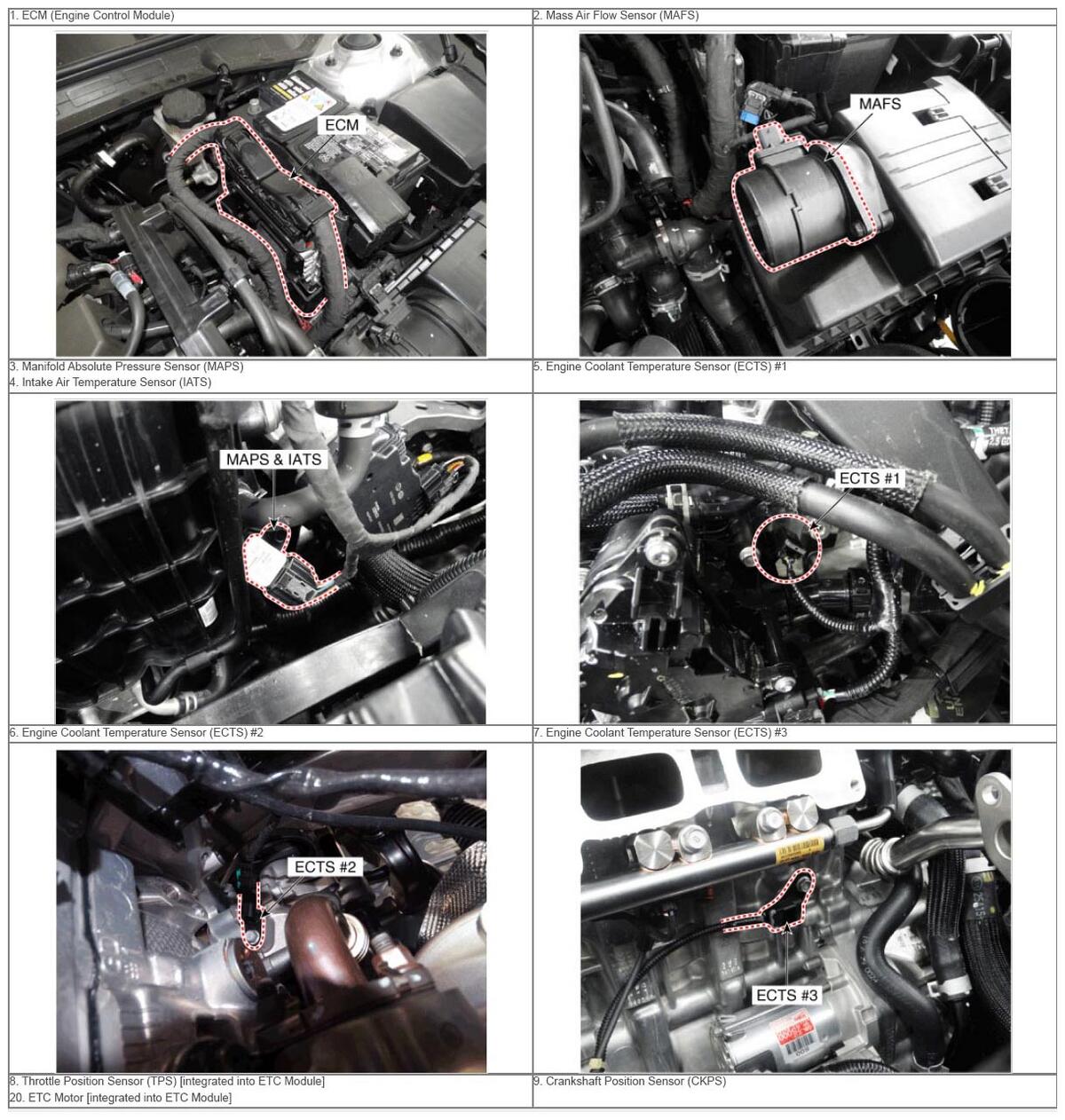

G16734190Courtesy of HYUNDAI MOTOR AMERICA

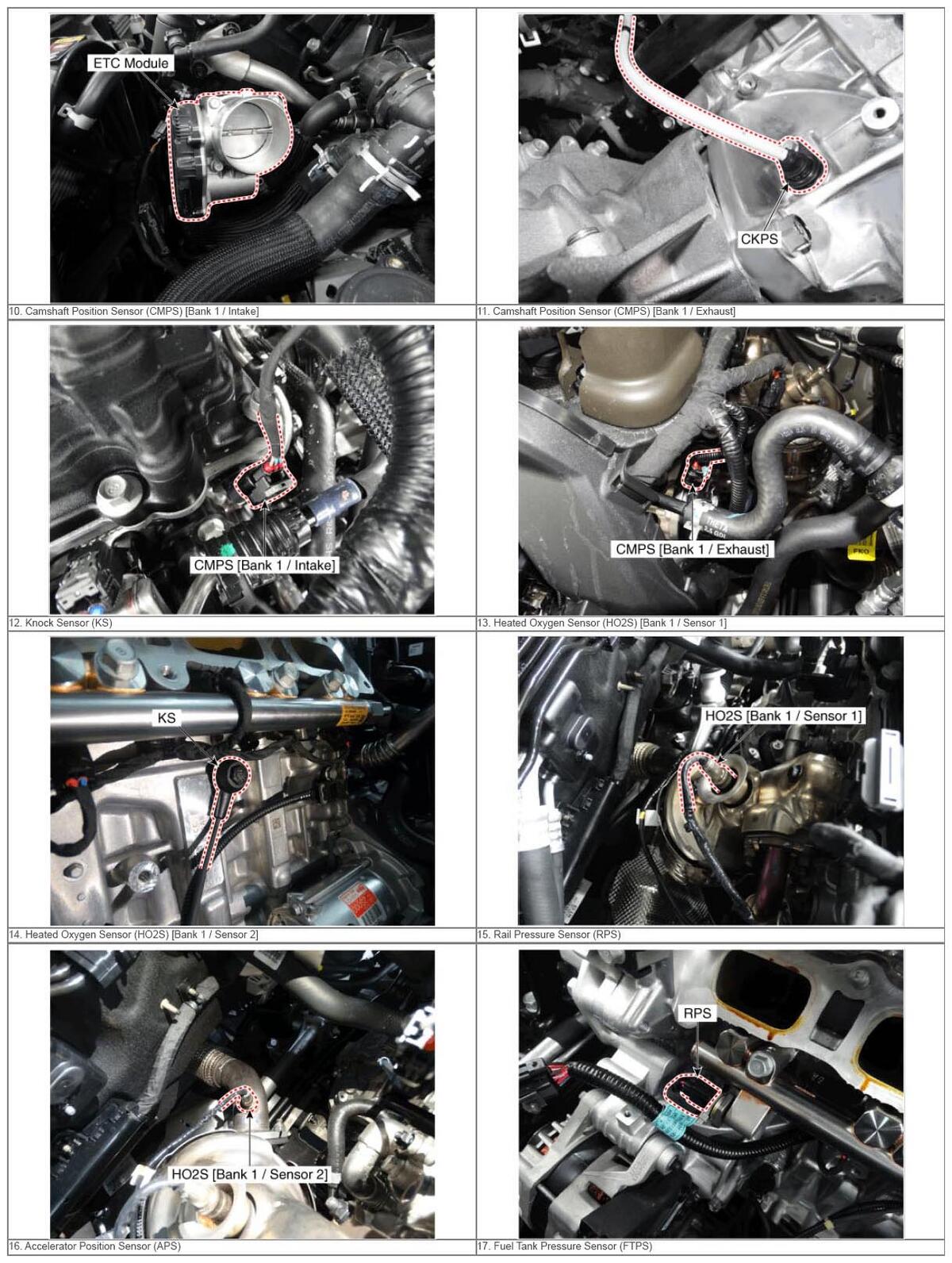

G16734191Courtesy of HYUNDAI MOTOR AMERICA

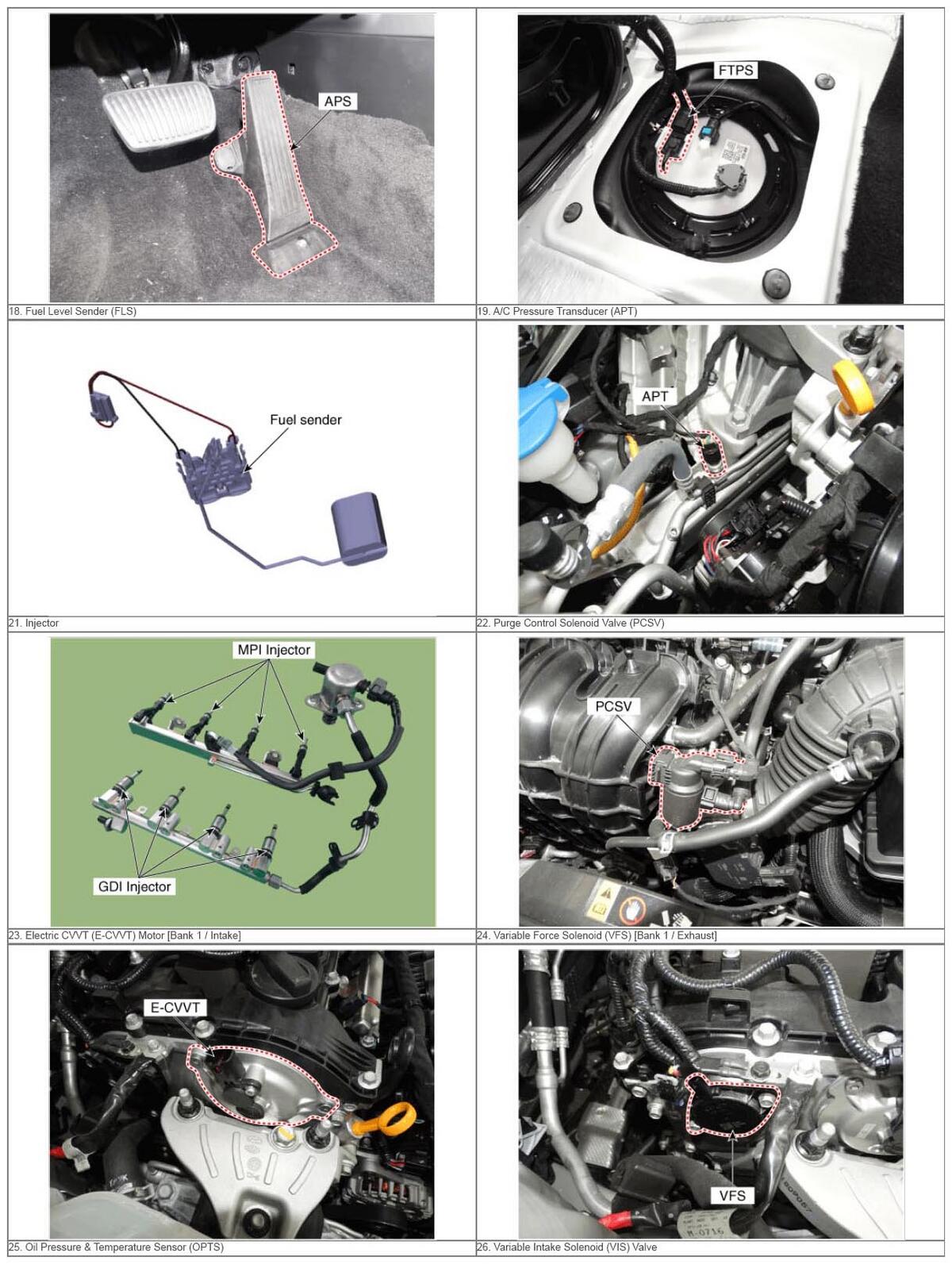

G16734192Courtesy of HYUNDAI MOTOR AMERICA

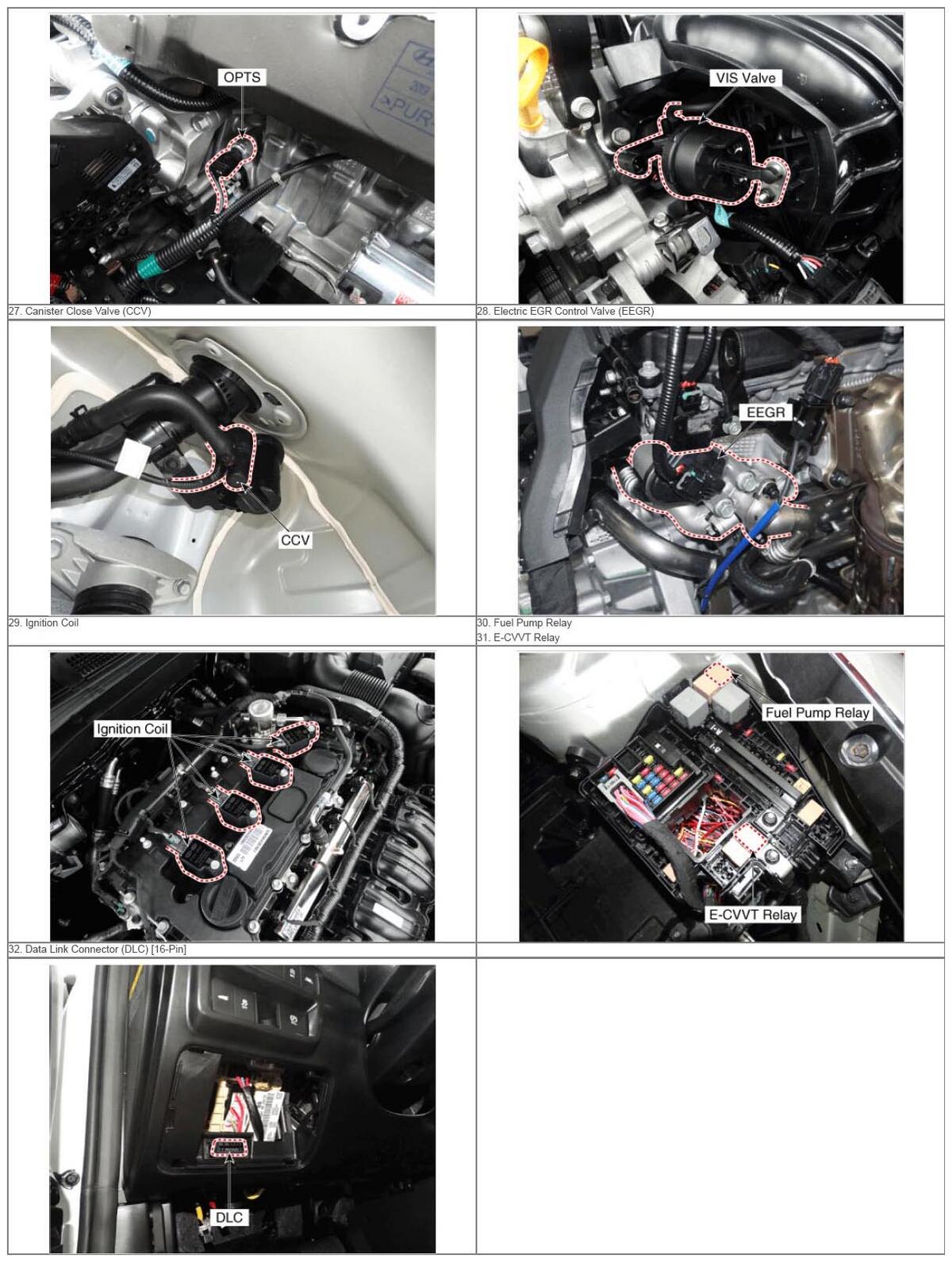

G16734193Courtesy of HYUNDAI MOTOR AMERICA
