Repair Procedures: Removal
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.
(Refer to General Information - " LIFT AND SUPPORT POINTS ")
- Turn the ignition switch OFF, and disconnect the battery negative (-) terminal.
- Remove the EGR cooler.
(Refer to Engine Mechanical System - " EGR COOLER ")

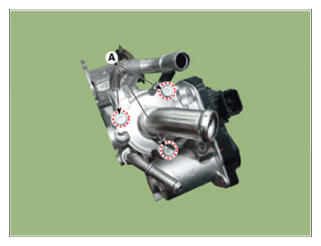

- Remove the EEGR control valve after loosening the mounting bolt (A).
Tightening Torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)
