Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - " FRONT BUMPER ASSEMBLY REPAIR PROCEDURES ")

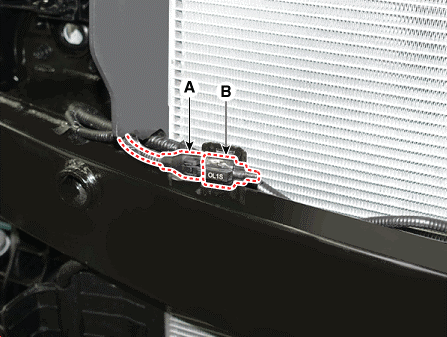

- Disconnect the ATS connector (A), and then removing the sensor (B).
