Components Location

G16172426Courtesy of HYUNDAI MOTOR AMERICA

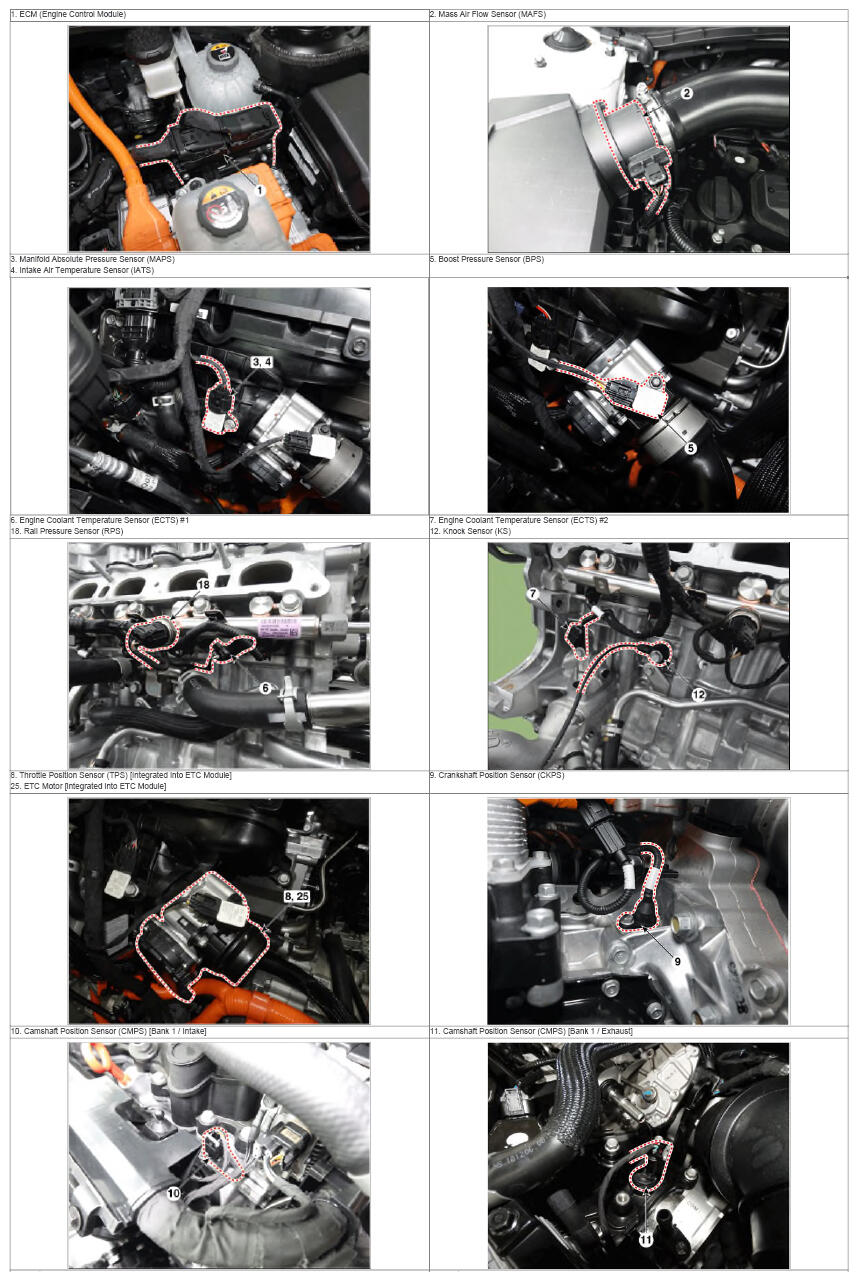

G16172427Courtesy of HYUNDAI MOTOR AMERICA

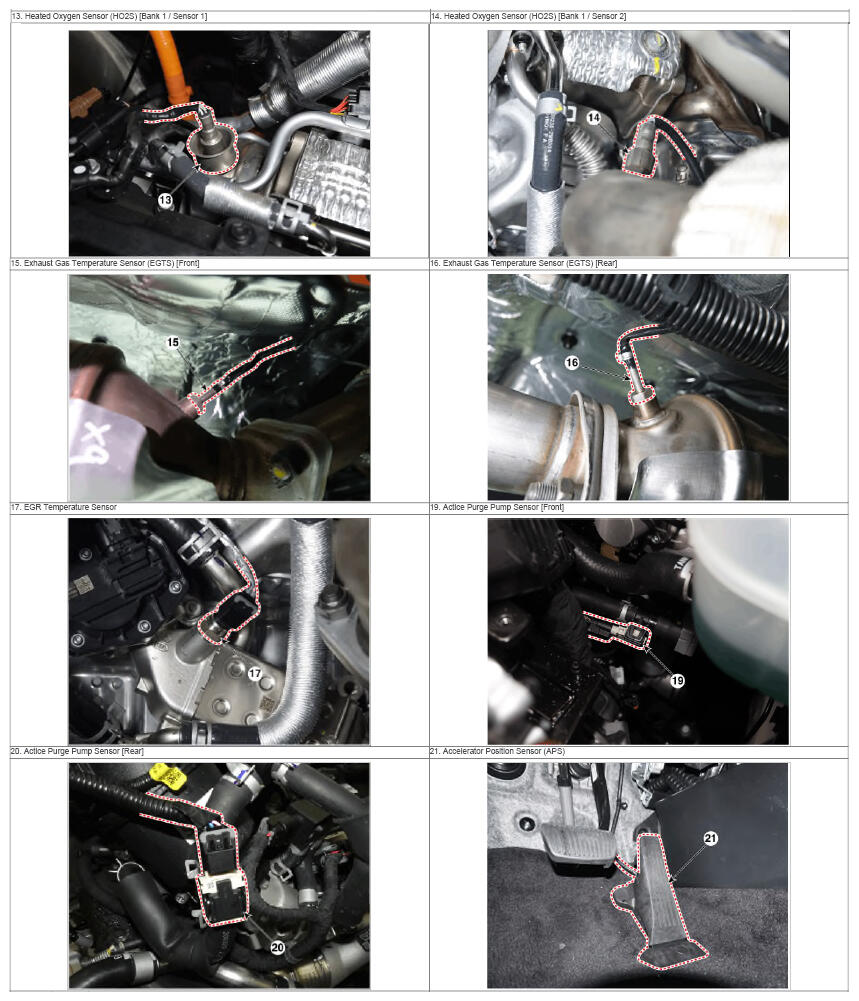

G16172428Courtesy of HYUNDAI MOTOR AMERICA

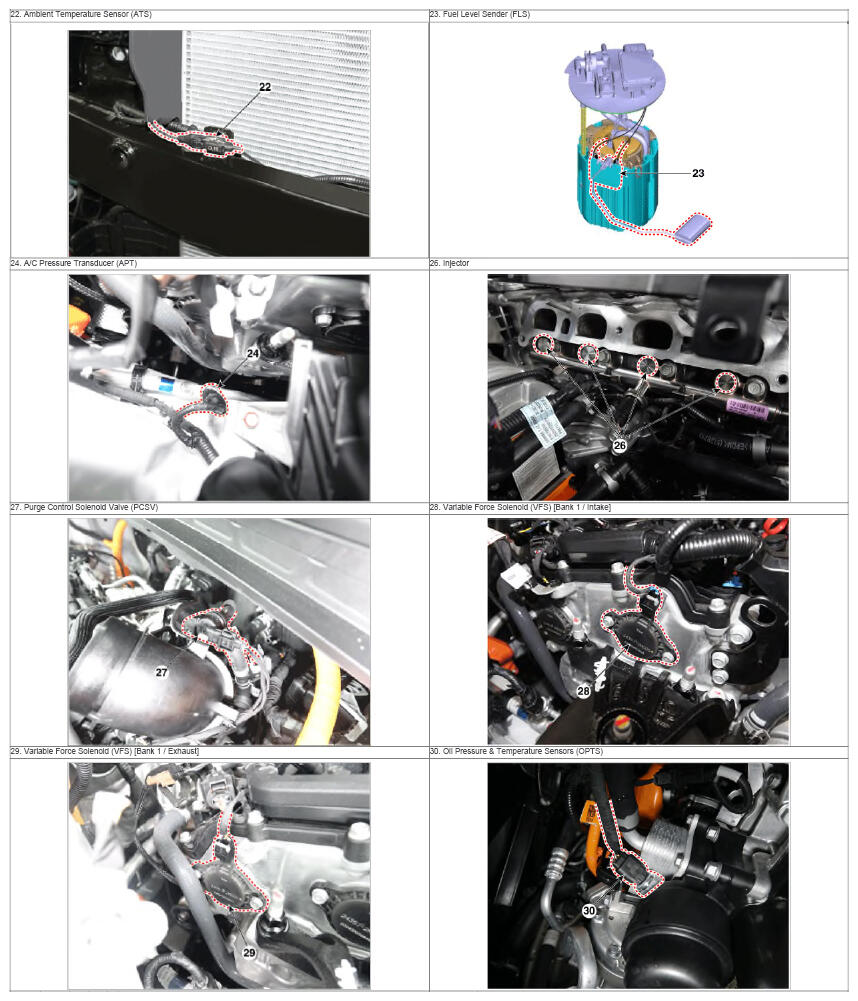

G16172429Courtesy of HYUNDAI MOTOR AMERICA

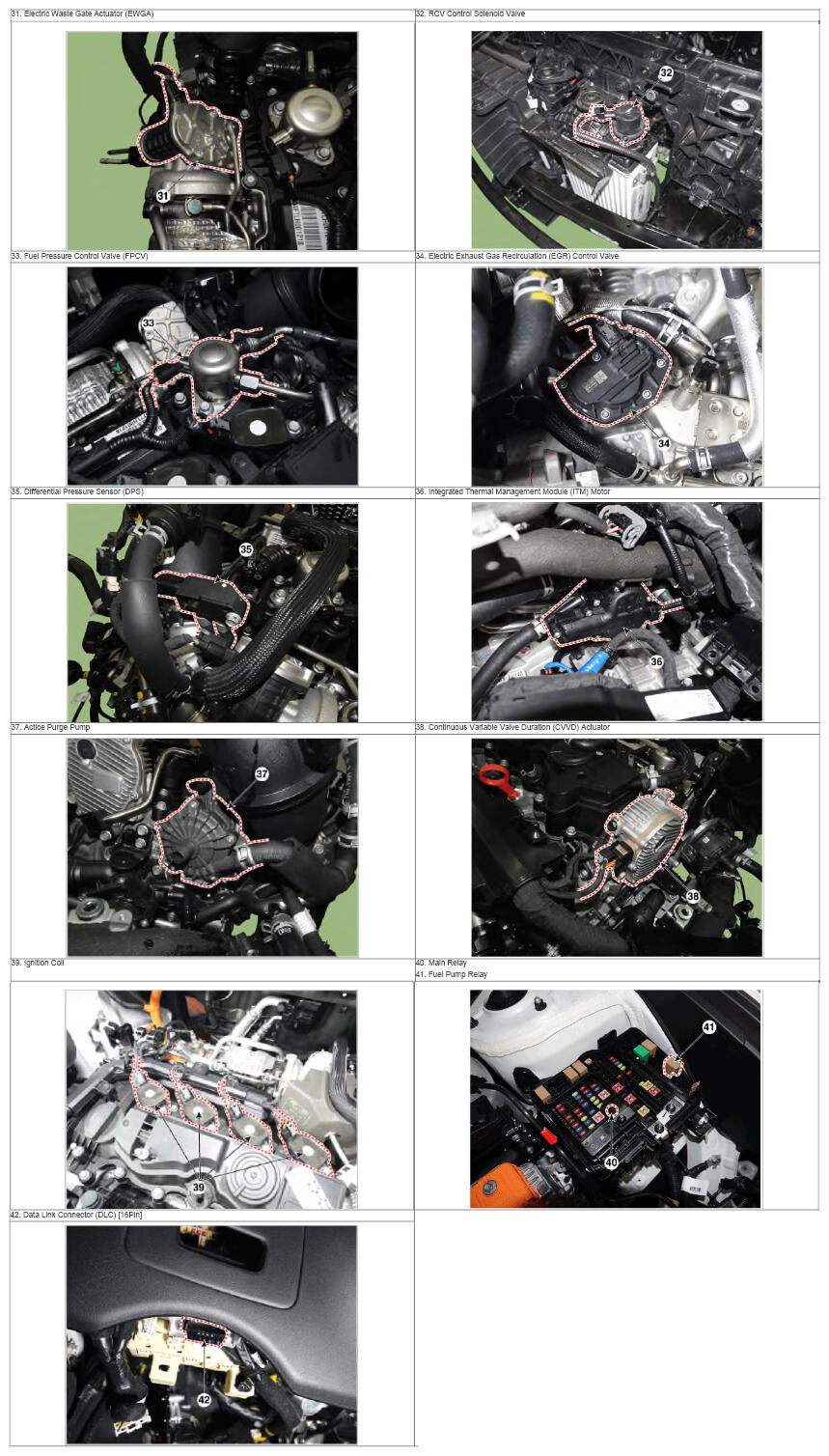

G16172430Courtesy of HYUNDAI MOTOR AMERICA
