Repair Procedures: Removal
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER REPAIR PROCEDURES ")

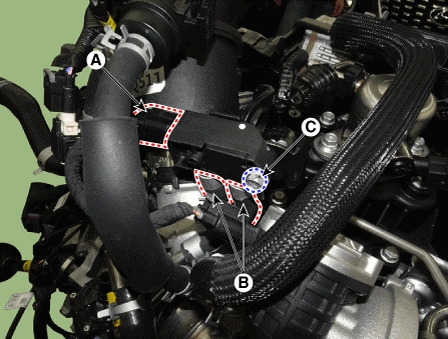

- Disconnect the DPS connector (A).
- Disconnect the DPS hose (B).
- Remove the DPS after loosening the mounting bolt (C).
Tightening Torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)
