Rod Adjustment Procedure Flowchart

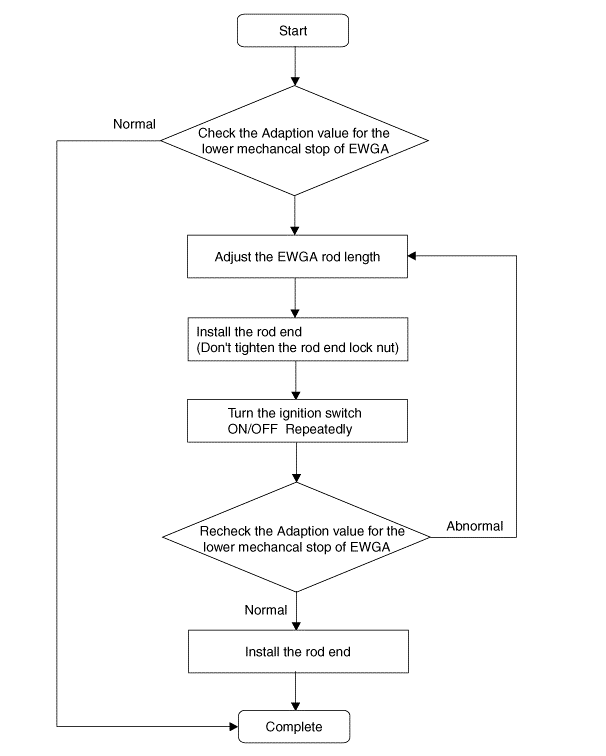

G16172583Courtesy of HYUNDAI MOTOR AMERICA
  1. Check that the waste gate turbocharger is cool enough to work.

    Information

    • It can help cooling down fast to use a electric fan.
    • The cooling part (A) and the wind direction (B) are as follows.

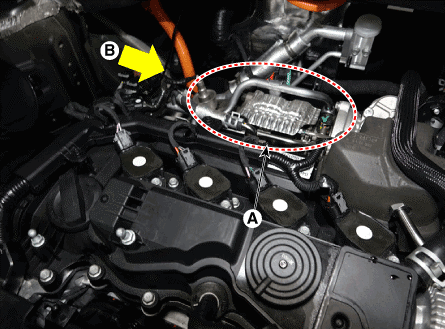

      G16172584Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn the ignition switch OFF.
  3. Connect the diagnostic tool to Data Link Connector (DLC).
  4. Turn the ignition switch ON.
    CAUTION:
    • Do not start the engine.
  5. Select VIN or Vehicle on the initial screen.
  6. Enter "Engine Control" menu after selecting vehicle information (Vehicle model, Model year, Engine type) or entering the VIN number.
  7. Select "Current Data".
  8. Without starting the engine, cycle the ignition ON for 5 seconds then ignition OFF for 5 seconds then check the "Adaption value for the low mechanical stop of EWGA" on the diagnostic tool.

    Repeat this step until the amount of the adaption value change compared to previous cycle is below 0.05V.

    NOTE:
    • Do not start the engine. This is a crucial step to read the correct adaption value.
  9. Check that "Adaption value for the lower mechanical stop of EWGA" is within the specified voltage value.

    Voltage:  3.5 - 3.7V

  10. If the voltage value measured is not within the specified voltage value, adjust the EWGA rod length. But, if no, no further procedure is required.

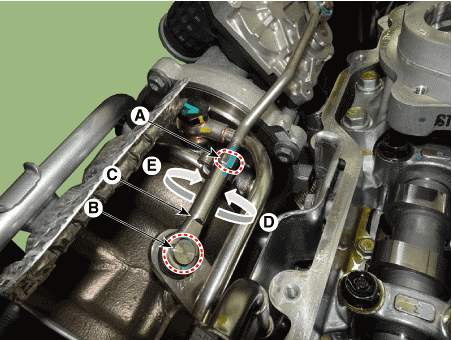

    1. Loosen the rod end lock nut (A) and remove the C-ring (B).
    2. Adjust the rod end part (C) by rotating it clockwise (D) or counterclockwise (E) to satisfy the specification.
    Adaption value for the lower mechanical stop of EWGA (V) Adjustment direction of rod end Rod length variation (After adjustment)
    >3.7 counterclockwise Longer
    <3.5 clockwise Shorter

    Information

    Turning angle Changing level of the adaption value (V)
    0.5 turn (180°) About 0.1
    1 turn (360°) About 0.2
    G16172585Courtesy of HYUNDAI MOTOR AMERICA

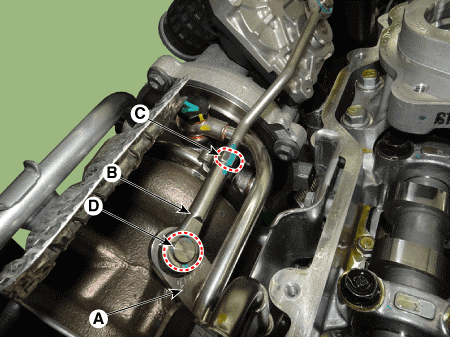

  11. Install the rod end (B) to the turbocharger lever (A) temporarily. Don't tighten the rod end lock nut (C) and C-ring (D).
    G16172586Courtesy of HYUNDAI MOTOR AMERICA
  12. Check "Adaption value for the lower mechanical stop of EWGA" after selecting "Current Data" menu.

    Turn the ignition switch ON/OFF repeatedly until the changing value of "Adaption value for the lower mechanical stop of EWGA" is within 0.05V.

    NOTE:
    • Turn the ignition switch ON/OFF. But hold 5 seconds at each IG ON or OFF state.
  13. If the voltage value measured is not within the specified voltage value, repeat 9-12 procedures until the voltage value is within the specified voltage value.
  14. Check that "Adaption value for the lower mechanical stop of EWGA" is within the specified voltage value.
  15. If it is within the specified voltage value, install the rod end to the turbocharger lever.

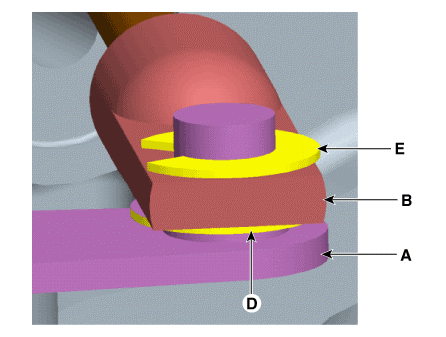

    1. Install the rod end (B) to the turbocharger lever (A).
    2. Tighten the rod end lock nut (C).
    3. Install the C-ring (E).
    NOTE:
    • Be careful not to remove the washer (D).

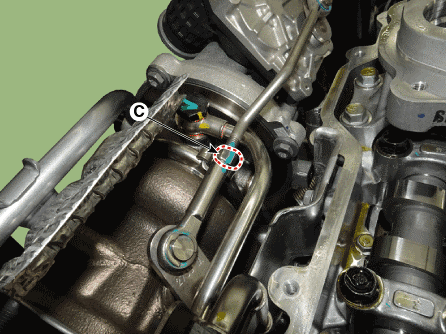

    G16172587Courtesy of HYUNDAI MOTOR AMERICA
    G16172588Courtesy of HYUNDAI MOTOR AMERICA
