Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold
(Refer to Engine Mechanical System - " INTAKE MANIFOLD REPAIR PROCEDURES ")

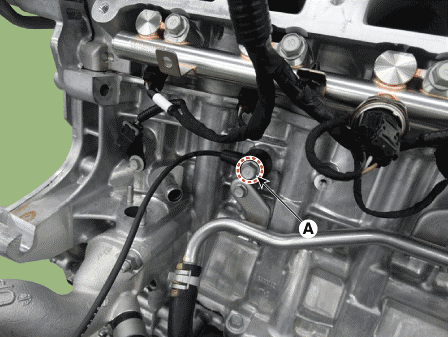

- Remove the installation bolt (A), and then remove the sensor from the cylinder block.
Tightening Torque:
18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 lb-ft)
