Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery (-) cable.
- Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
- Disconnect the air intake hose (C).

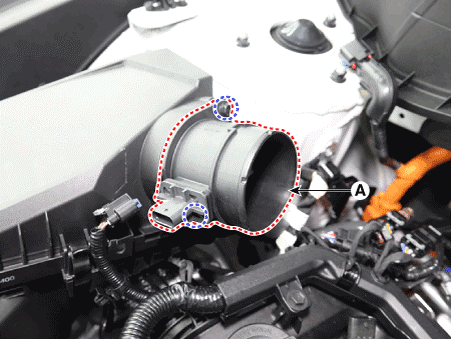

- Remove the mass air flow sensor (A) after loosening mounting bolt.
Tightening Torque:
5 - 7 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft)
