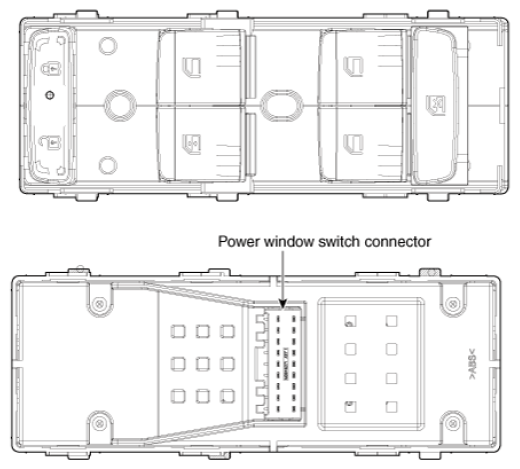

Driver Power Window Switch
| Power window switch connector | Pin NO | Description |
|---|---|---|
| 1 | Right power | |
| 2 | Front right window motor (Up) | |
| 3 | Front right window motor (Down) | |
| 4 | Symbol lamp power | |
| 5 | Door lock switch | |
| 6 | Door unlock switch | |
| 7 | Ground | |
| 8 | Door lock indicator power | |
| 9 | Driver side safety window | |
| 10 | Right window lock power | |
| 11 | Rear right window motor (Down) | |
| 12 | Rear right window motor (Up) | |
| 13 | Left window lock power | |
| 14 | Rear left window motor (Up) | |
| 15 | Left power | |
| 16 | - | |
| 17 | *Rear left window motor (Down) | |
| 18 | Ground |
