Components And Components Location: Component

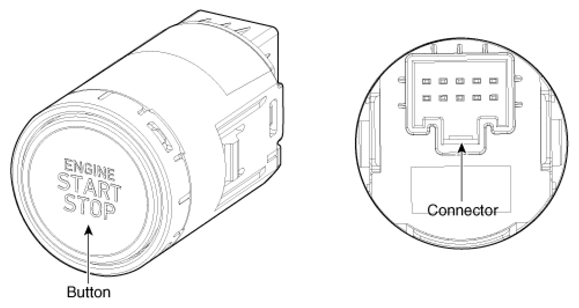

G16694411Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin NO Description
G16108947Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch 1
2 -
3 SSB illumination (+)
4 Immobilizer power
5 -
6 Ground
7 SSB switch 2
8 SSB illumination (-)
9 -
10 Immobilizer ground
