Connector And Terminal Information

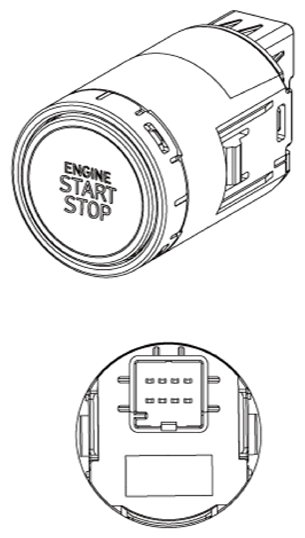

G16548570Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin No Function
G16548571Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch 1_output
2 SSB symbol illumination (+)
3 Immobillizer Power
4 -
5 Ground
6 SSB Switch 2_output
7 SSB symbol illumination (-)
8 Immobillizer Ground
