IAU Learning Status Inspection

Information

• Digital key function works only when the learning states of IAU and IBU are learnt.
• You can confirm the learning status as below:

1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

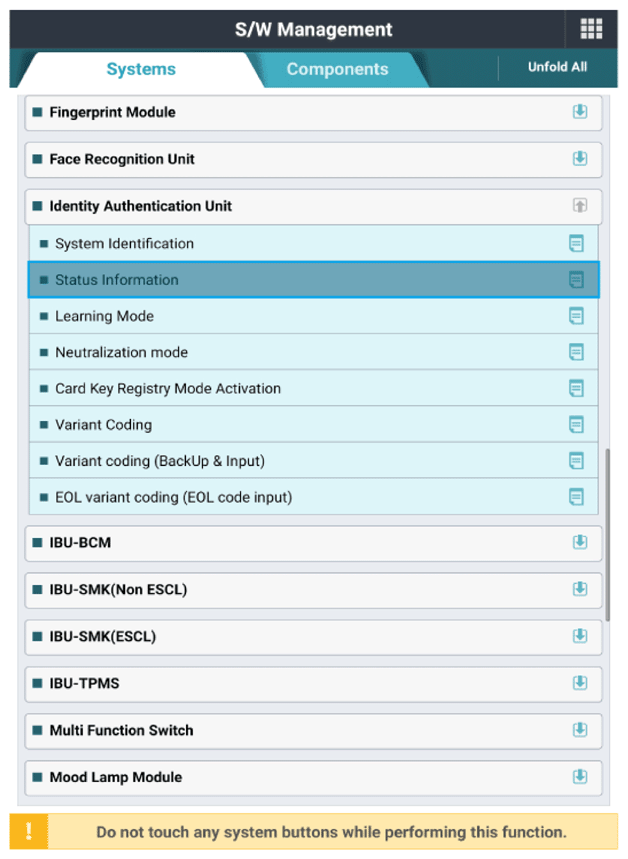

2. Select the "S/W Management" and "IAU-IBU learning status".

   Courtesy of HYUNDAI MOTOR AMERICA

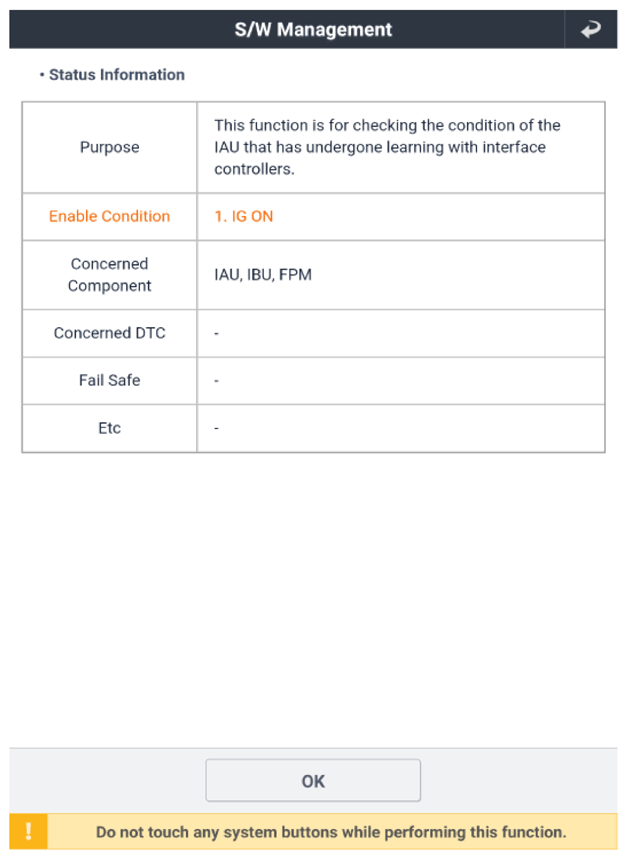

3. Check the IAU learning status.

   Courtesy of HYUNDAI MOTOR AMERICA

   Mark	Description	Learning status
   Virgin	Initial state	Non-learning state
   Learnt	Learning completiond state	Learning completiond state
   Neutralized	Neutral state	Non-learning state
