Smart Key Code Saving

Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat and turn the power on diagnostic tool.

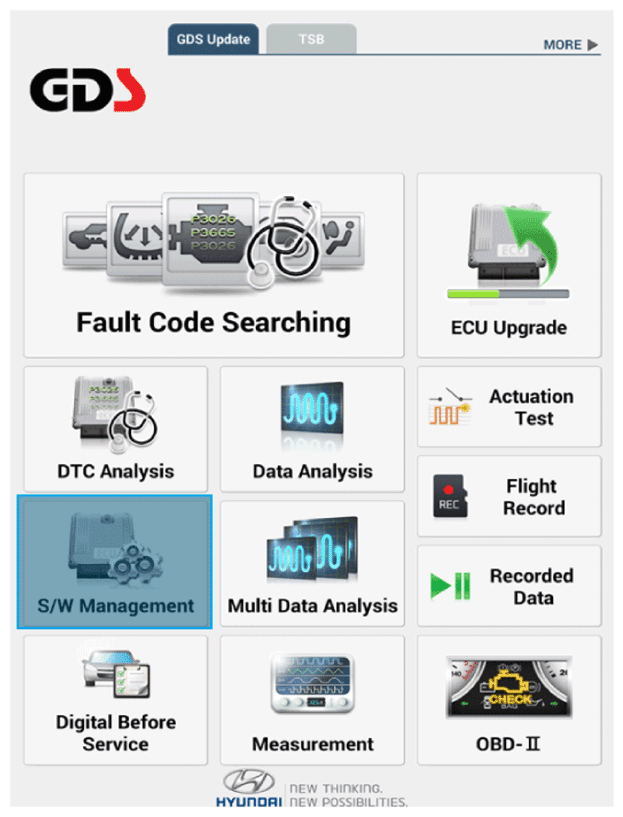

"Select the 'S/W Management' and 'Car model'.

Courtesy of HYUNDAI MOTOR AMERICA

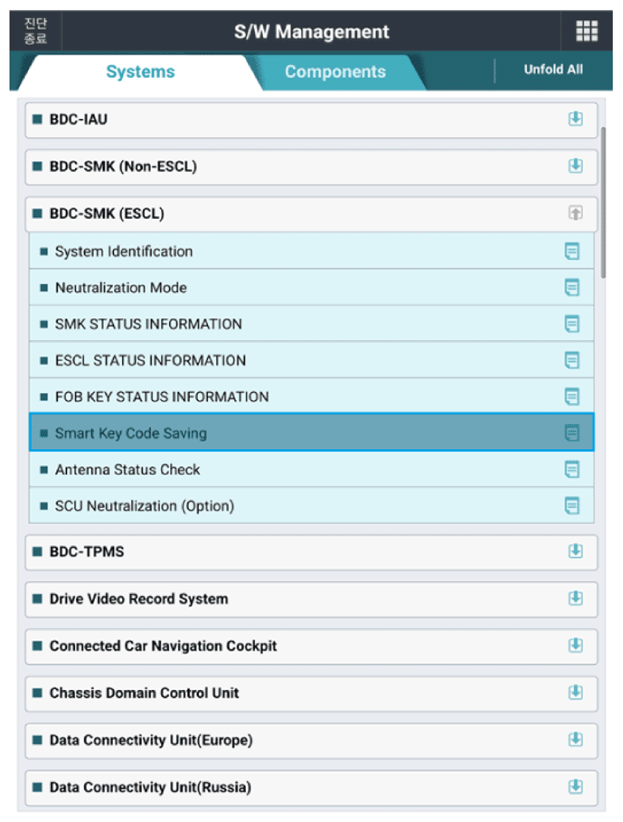

Select the 'Smart Key Unit' and 'Smart Key Code Saving'.

Courtesy of HYUNDAI MOTOR AMERICA

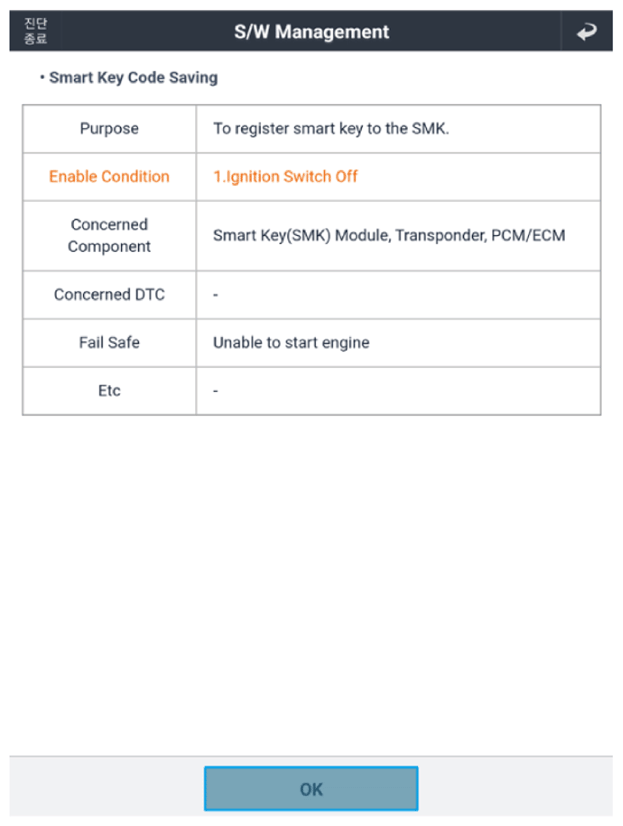

Prepare the smart key to be registered and press "OK".

Courtesy of HYUNDAI MOTOR AMERICA
Enter the Pin Code for registration and follow the instructions on the screen.

Courtesy of HYUNDAI MOTOR AMERICA

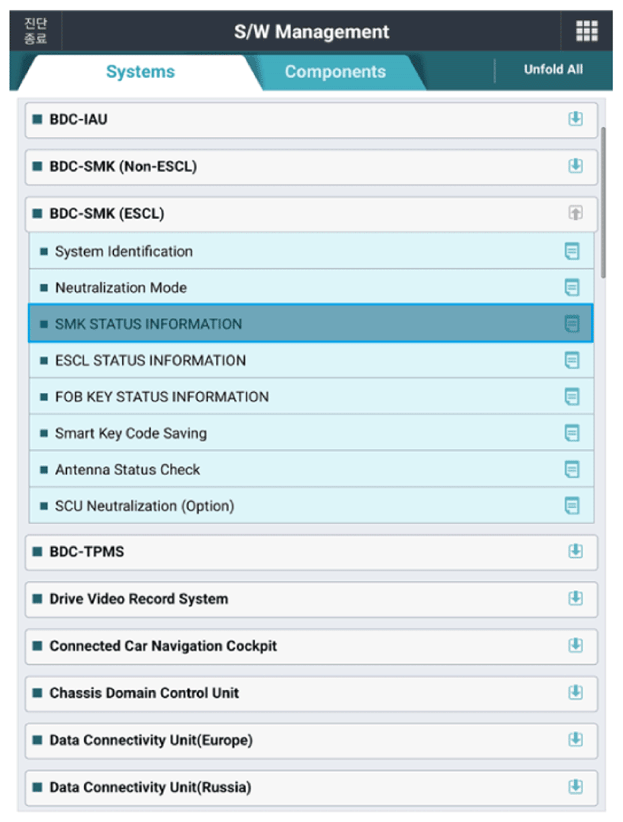

After registration, enter "SMK STATUS INFORMATION" mode to check.
