IMS Button

  1. Disconnect the battery (-) terminal.
  2. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

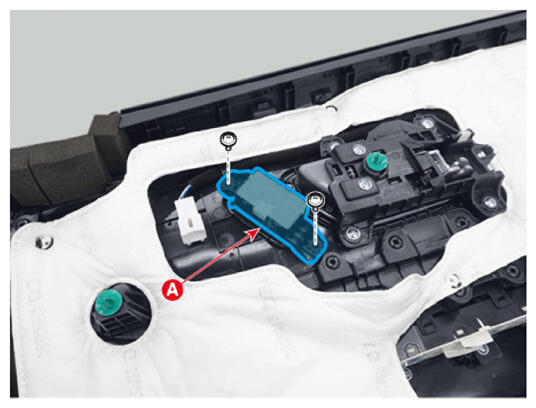

  3. Remove the IMS switch (A), after removing the screws.
    G16548639Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
