Position Switch: Installation
- Check that the shift lever is placed in the "N" position.

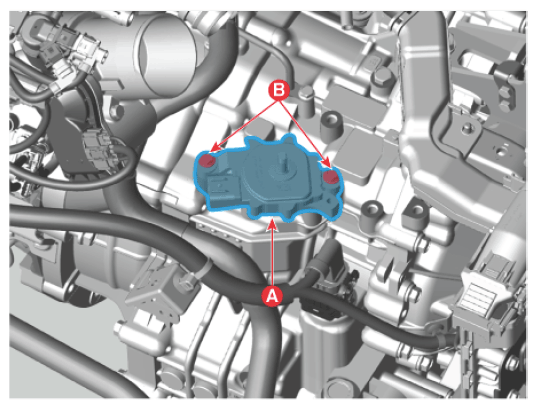

- Lightly tighten the bolts (B) after installing the Position switch (A).

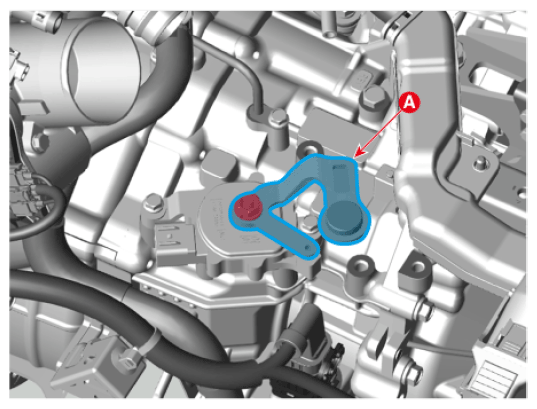

- Lightly tighten the manual control lever nut after installing the manual control lever (A).

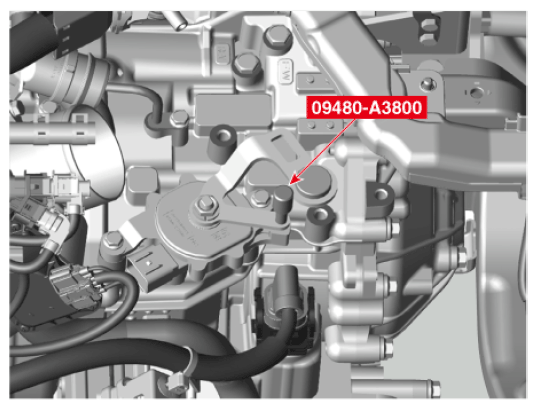

- Align the hole in the manual control lever with the "N" position hole of the Position switch and then insert the Position switch guide pin (09480-A3800).

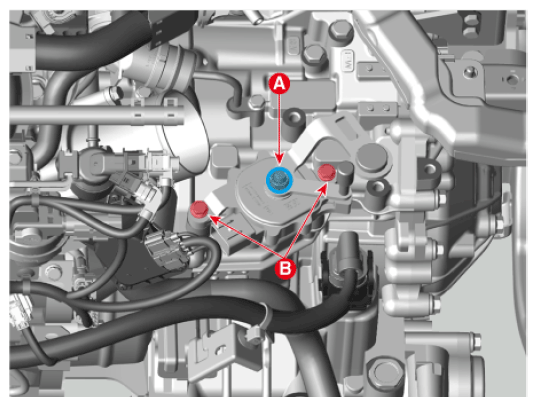

- Tighten the nut (A) and bolts (B) with the specified torque.
Tightening torque :
- 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)
- 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

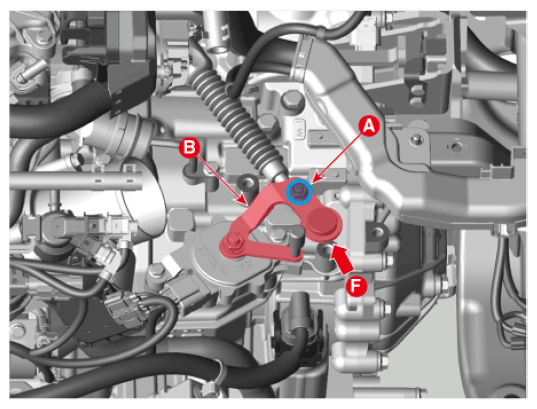

- Lightly tighten the nut (A) after connecting the shift cable in the manual control lever (B).
- Push shift cable lightly to "F" direction shown to eliminate free play of shift cable.
- Tighten the nut (A) with the specified torque.
Tightening torque :
9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)
- Remove the Position switch guide pin (SST No.: 09480-A3800) from the hole.

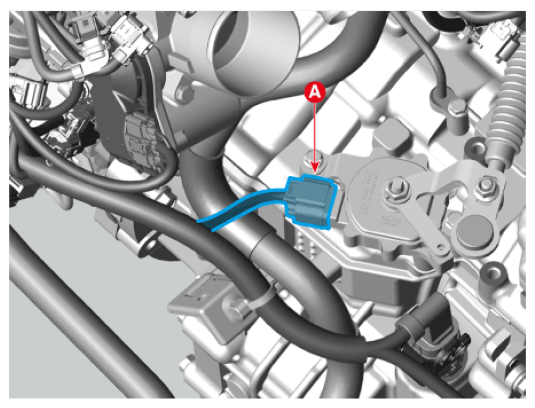

- Connect the Position switch connector (A).
- Install the air cleaner and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:- Check that operating surely at each range of the Position switch corresponding to each position of shift lever.
