Shift Cable: Installation

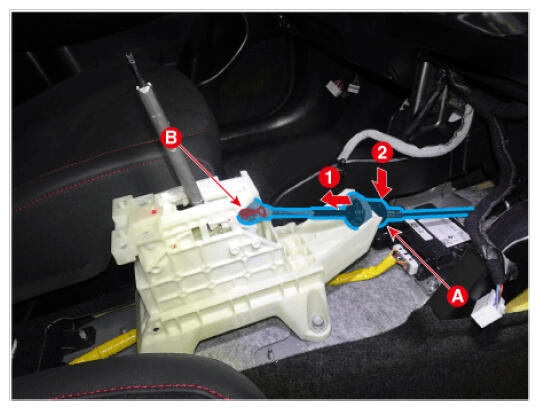

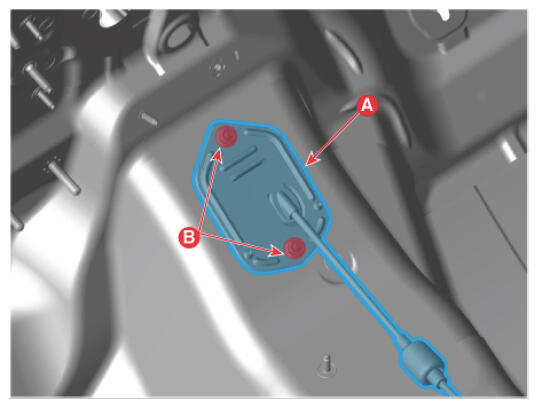

Install the shift cable (A) and then fix the snap pin (B).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

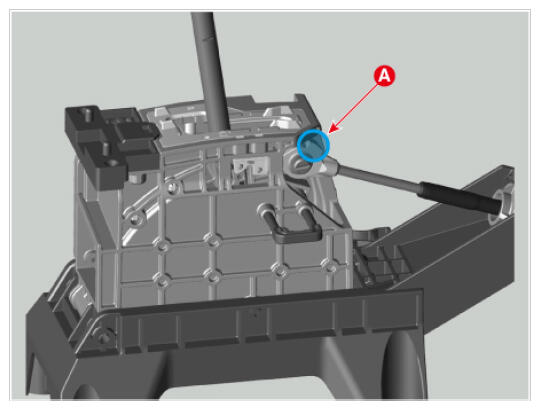

When assembling shift cable, the projection (A) must face upwards.

Courtesy of HYUNDAI MOTOR AMERICA

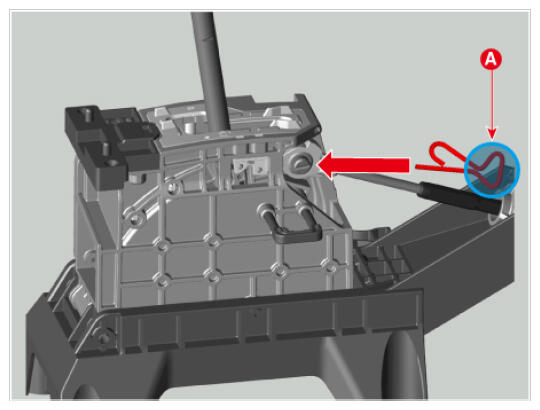

When assembling the snap pin, be careful about the correct direction.
- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.

Courtesy of HYUNDAI MOTOR AMERICA

Install the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

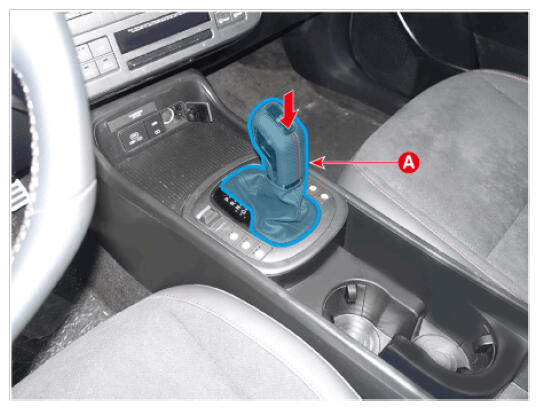

Install the shift lever knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA

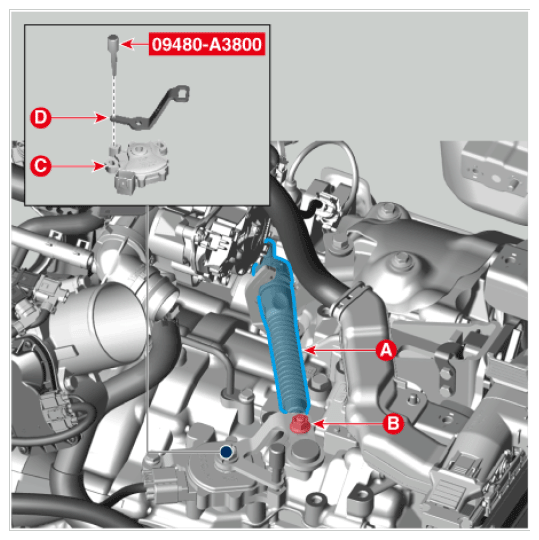

Install the shift cable (A) in the cable bracket.
Align the hole (C) in the manual control lever with the "N" position hole (D) of the position switch and then insert the position switch guide pin (SST No.:09480-A3800).
Lightly tighten the nut (B) after connecting the shift cable (A) in the manual control lever.
Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable.
Tighten the nut (B) with the specified torque.
Tightening torque :

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the Position switch guide pin (09480-A3800) from the hole.
Install the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
- Check that operating surely at each range of the Position switch corresponding to each position of shift lever.
