Shift Lever: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Before installing, check that the shift lever and manual control lever are placed in the "N" position.
    CAUTION:

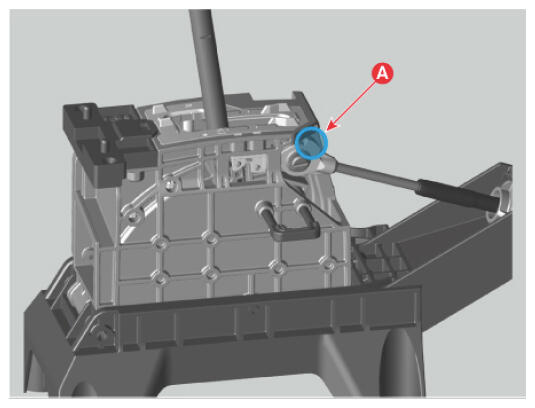

    • When assembling shift cable, the projection (A) must face upwards.
      G16543414Courtesy of HYUNDAI MOTOR AMERICA

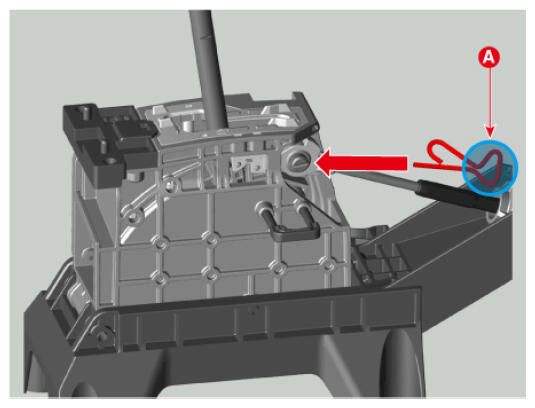

    • When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
      G16543415Courtesy of HYUNDAI MOTOR AMERICA
