Position Sensor: Installation
- Check that the shaft is in the "N" position.

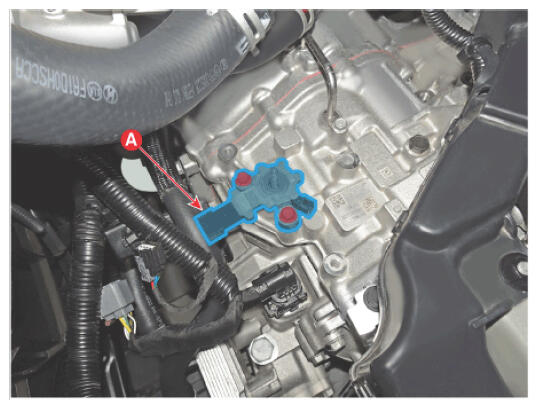

- Install the position sensor (A) and then lightly tighten the bolts.

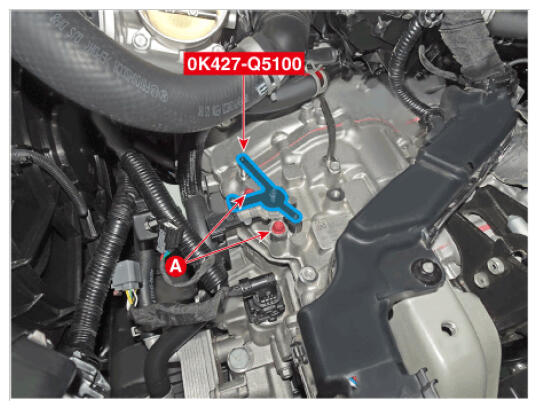

- Install the position sensor "N" fixing SST (0K427-Q5100) and then tighten the bolts (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

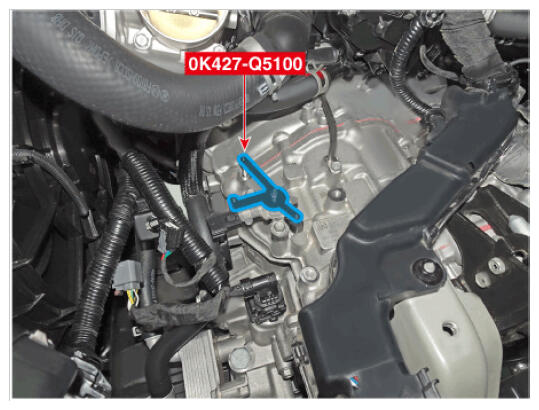

- Remove the position sensor "N" fixing SST (0K427-Q5100).

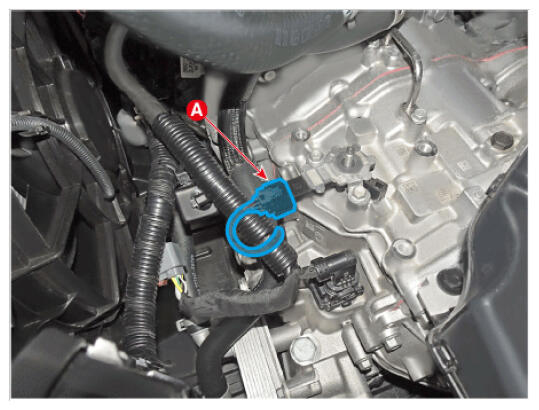

- Connect the position sensor connector (A).

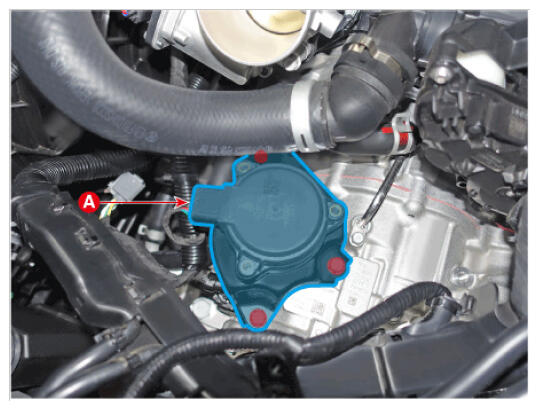

- Install the electronic shift actuator (A).
Tightening torque :
20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb-ft)

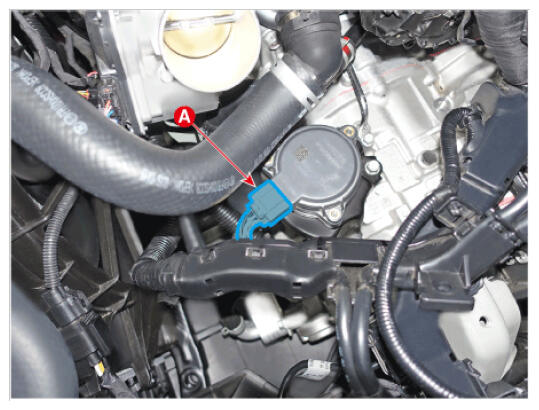

- Connect the electronic shift actuator connector (A).
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Check that operating surely at each range of the position sensor corresponding to each position of electric shift button.
