Position Sensor: Removal

Information

• With the ignition ON depress the brake pedal, operate the SBW lever, place it in the N position and then disconnect the battery (-) cable.

1. Remove the air cleaner assembly and air duct.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

2. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "BATTERY ")

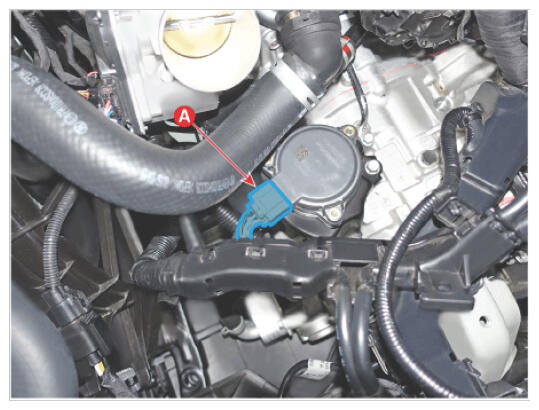

3. Disconnect the electronic shift actuator connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

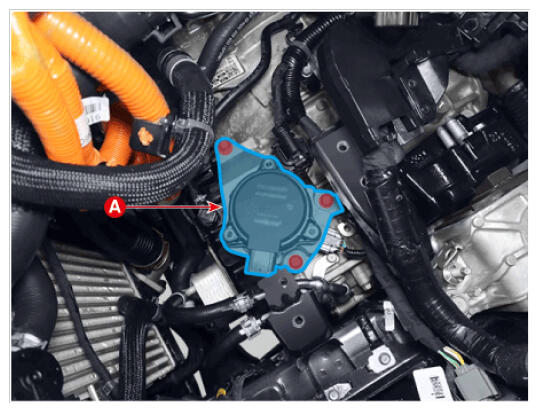

4. Remove the electronic shift actuator (A) after removing the bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

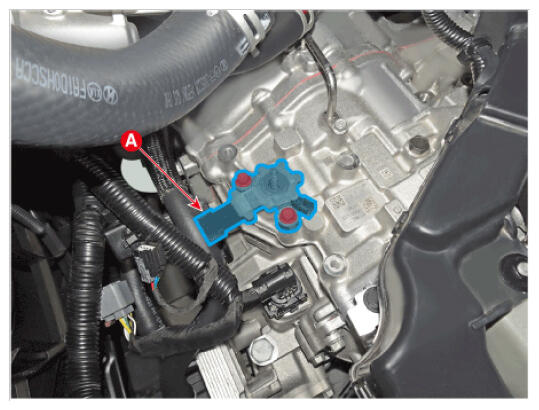

5. Disconnect the position sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

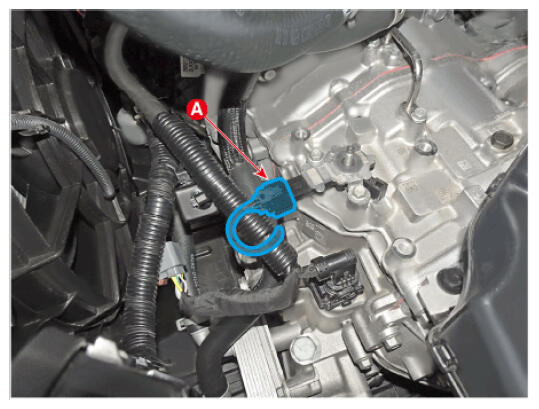

6. Remove the position sensor (A) after removing the bolts.

   Courtesy of HYUNDAI MOTOR AMERICA
