IAU Learning method

WARNING: This page is about a different variant/trim than selected.

Learning between IAU-BDC is carried out to set up the digital key system.

CAUTION:
  • When learning IAU-BDC, the digital key information previously stored in the vehicle is deleted.
  • It is used after re-enrolling the digital key.
  1. Connect the diagnostic tool to the vehicle.

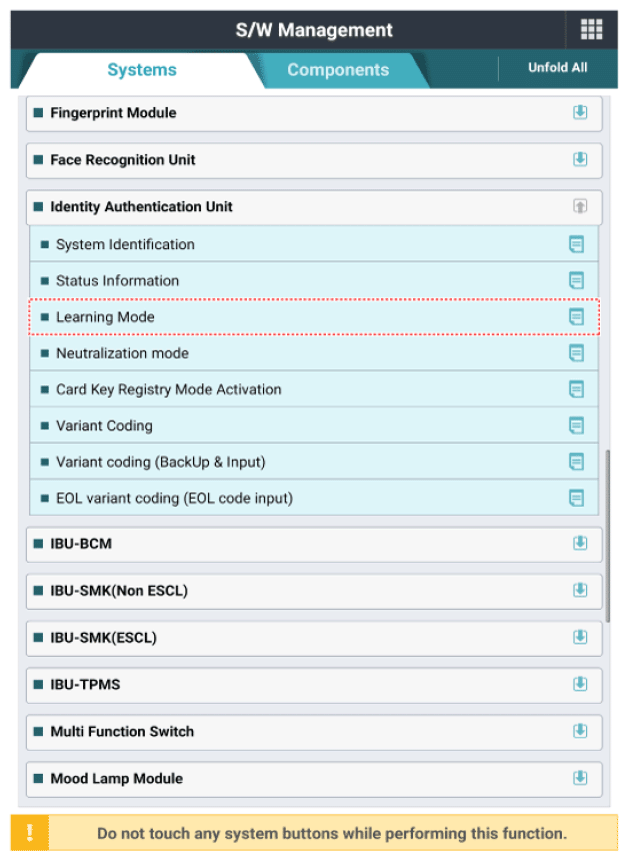

  2. Select the 'S/W Management' and 'Learning Mode'.
    G16984252Courtesy of HYUNDAI MOTOR AMERICA

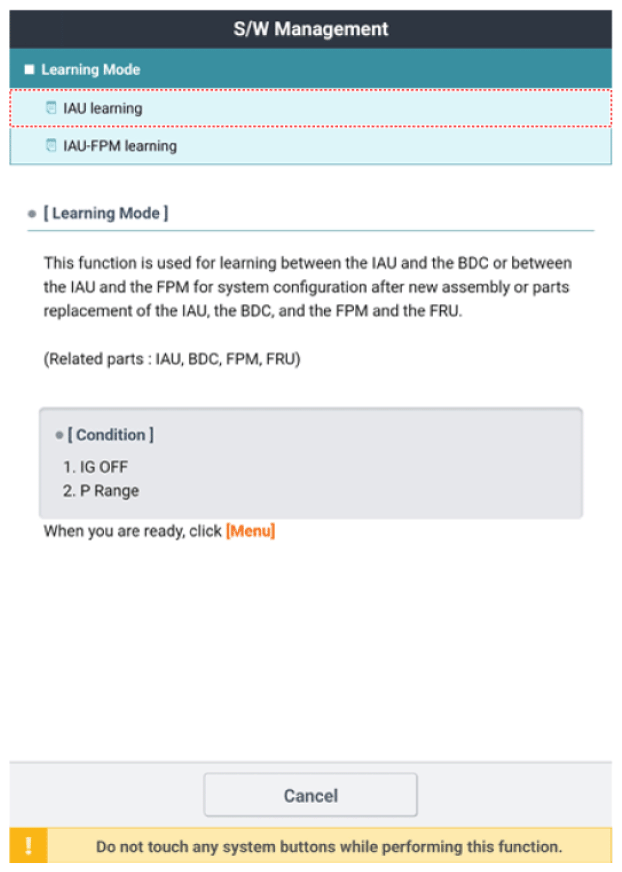

  3. Select IAU learning and perform the procedure according to the required conditions.
    G16984253Courtesy of HYUNDAI MOTOR AMERICA
