FPM Enroll Coverage Check

This feature is to check the condition of registered fingerprint. 'FPM self-diagnosis' should be OK before checking fingerprint condition.

1. Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat. Start the motor (IGN ON) and turn on the diagnostic device.

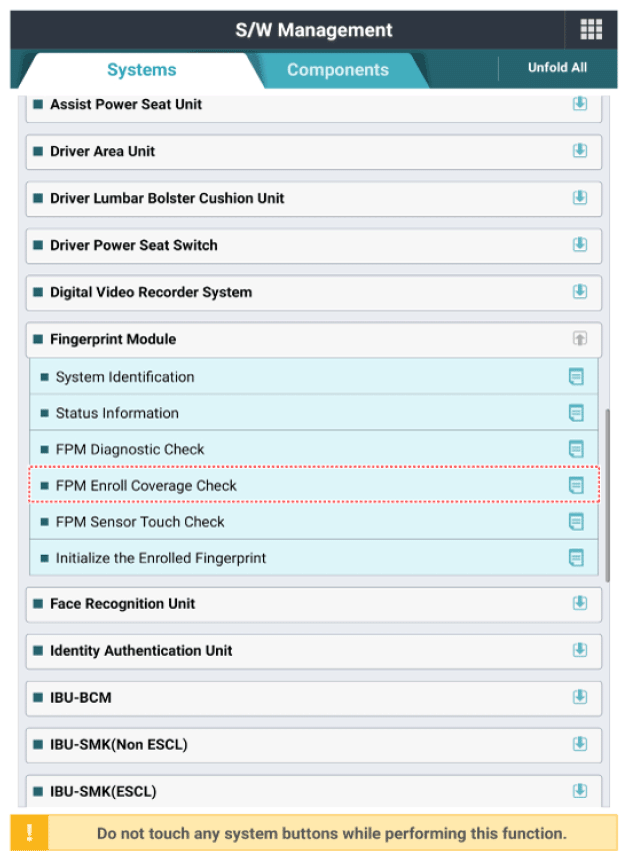

2. Select "S/W Management," then "Fingerprint Module."
3. Select "FPM Enroll Coverage Check"

   Courtesy of HYUNDAI MOTOR AMERICA

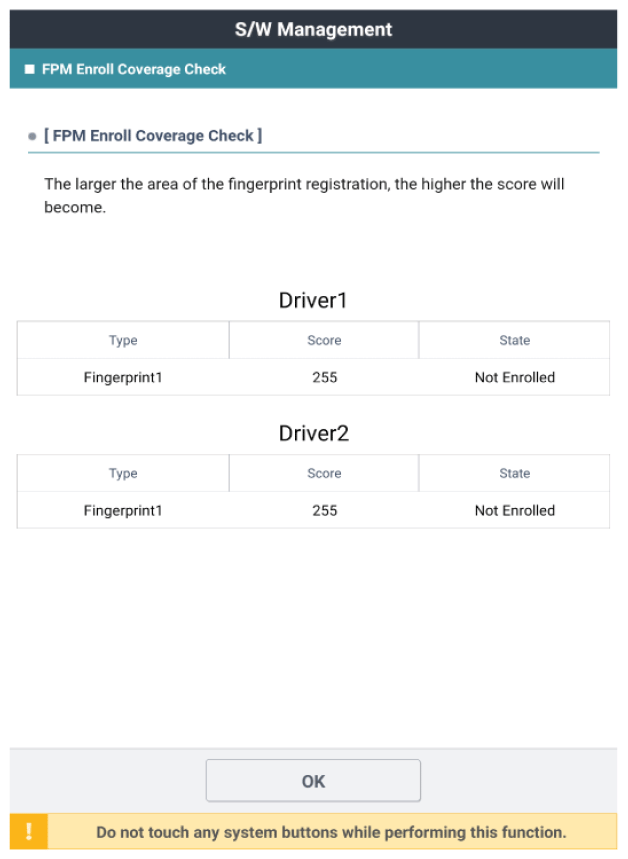

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   • Good
   • BAD
   • Not Enrolled
4. Explain based on below table.

   Category	Definition	Fingerprint re-registration required		Resolve
   		Criteria	Reason
   Registered fingerprint condition (Coverage)	The ratio of the fingerprint area used for registration to total finger indicated by the algorithm.	Condition = "BAD"	Fingerprint is only partially registered.	Use the fingerprint that are not deformed or damaged. Lay the finger thoroughly on the scanner for easier recognition.

   Information

   • If the condition displayed is "BAD," fingerprint recognition may often fail. However it is not the issue of the sensor.
   • Higher the score, better the chances for success in fingerprint recognition.
