Power-Net Domain Controller: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery (-) terminal.
  2. Remove the crash pad lower switch.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

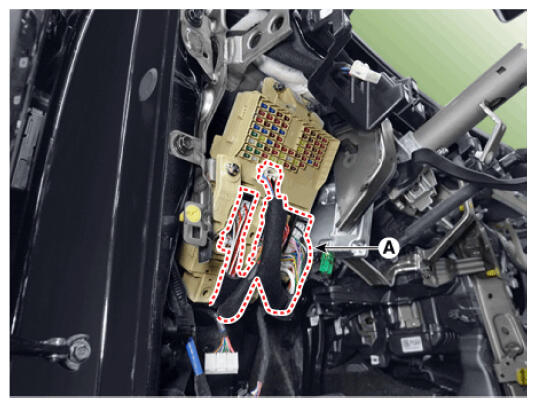

  3. Disconnect the power-net domain controller connectors (A).
    G16984170Courtesy of HYUNDAI MOTOR AMERICA

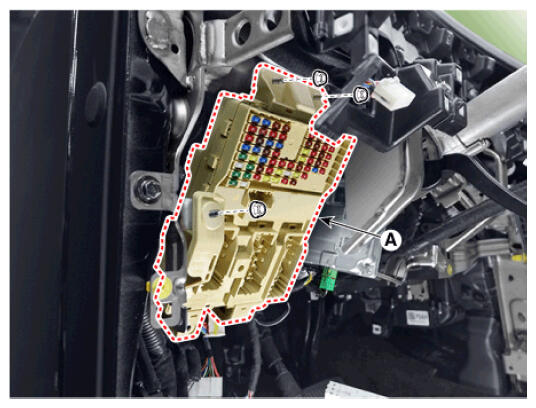

  4. Remove the power-net domain controller (A), after removing the nuts.
    G16984171Courtesy of HYUNDAI MOTOR AMERICA

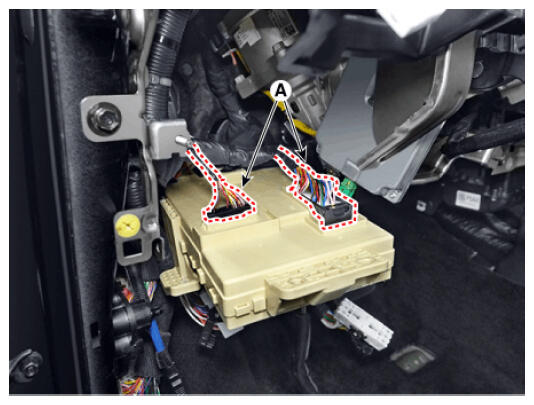

  5. Disconnect the power-net domain controller connectors (A).
    G16984172Courtesy of HYUNDAI MOTOR AMERICA

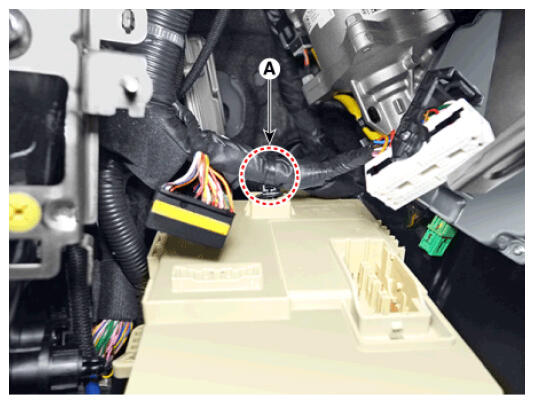

  6. Remove the wiring clips (A)
    G16984173Courtesy of HYUNDAI MOTOR AMERICA
