Power-net Domain Controller Variant Coding
WARNING: This page is about a different variant/trim than selected.
Information
- Power-net domain controller variant coding makes it possible to operate functions for each vehicle type.
- If the variant coding differs from the vehicle specification, a DTC is displayed.
- If the power-net domain controller is replaced with a new one, perform the "Variant Coding" procedure using diagnostic tool.
- Connect the diagnostic device to the data link connector, turn on the ignition (IGN ON), and then activate the diagnostic tool.

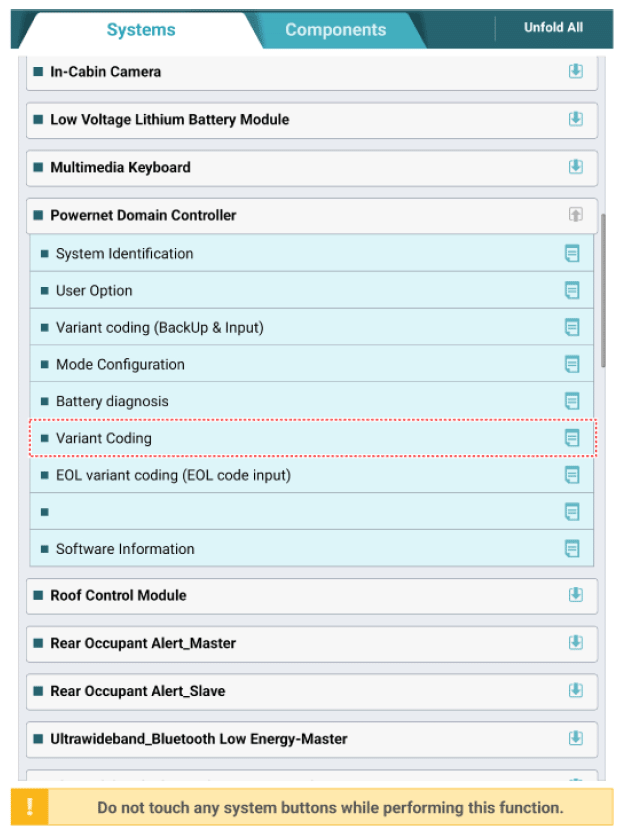

- Select the 'Car model' and "Power-net Domain Controller".
- Select the 'Variant Coding' and follow the instructions on the screen.
