Related Diagnostic Procedures

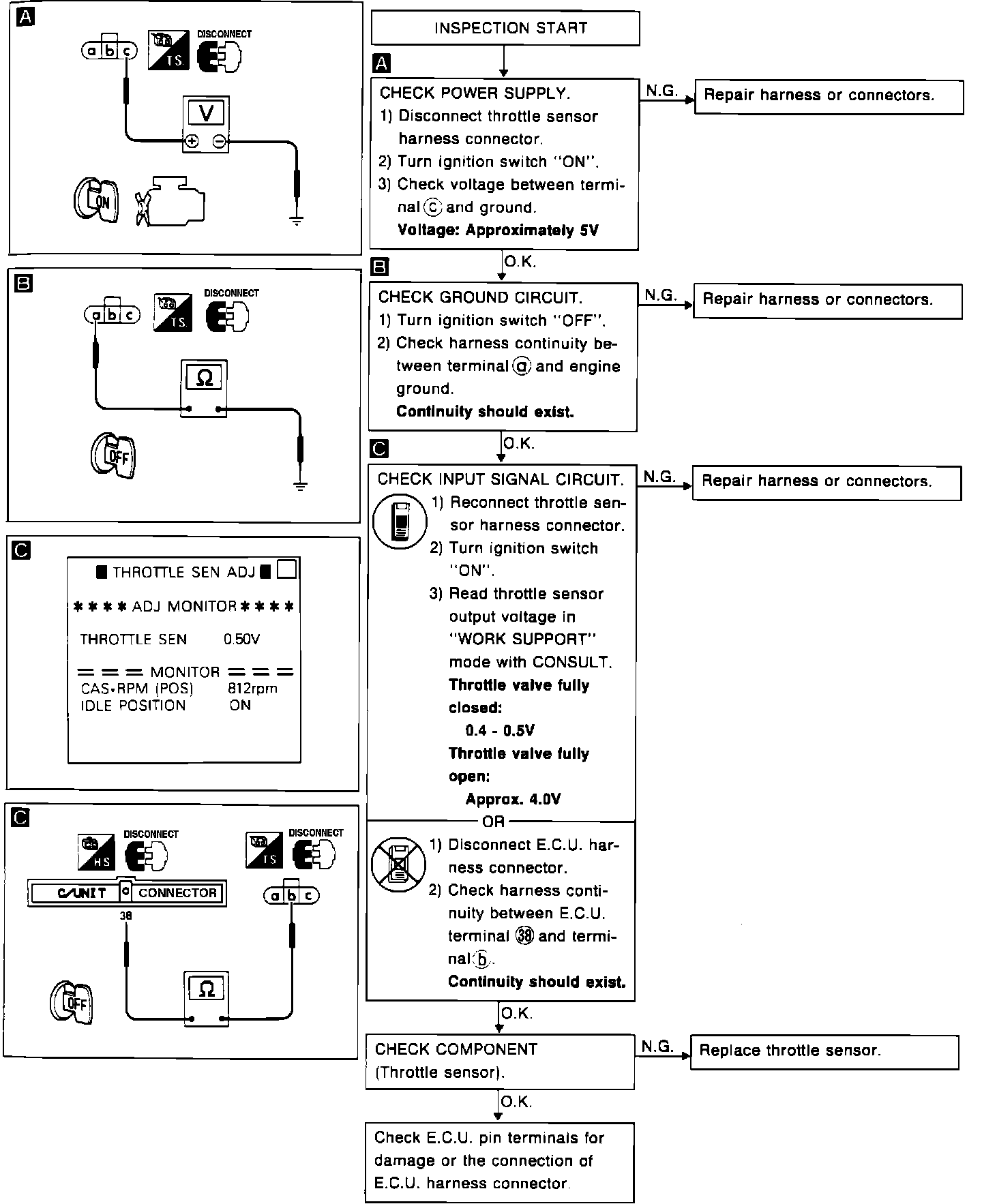

Fig. 111 Code 43, Throttle Sensor (Part 1 Of 2):
Fig. 111 Code 43, Throttle Sensor (Part 2 Of 2):
