Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breaker | ||

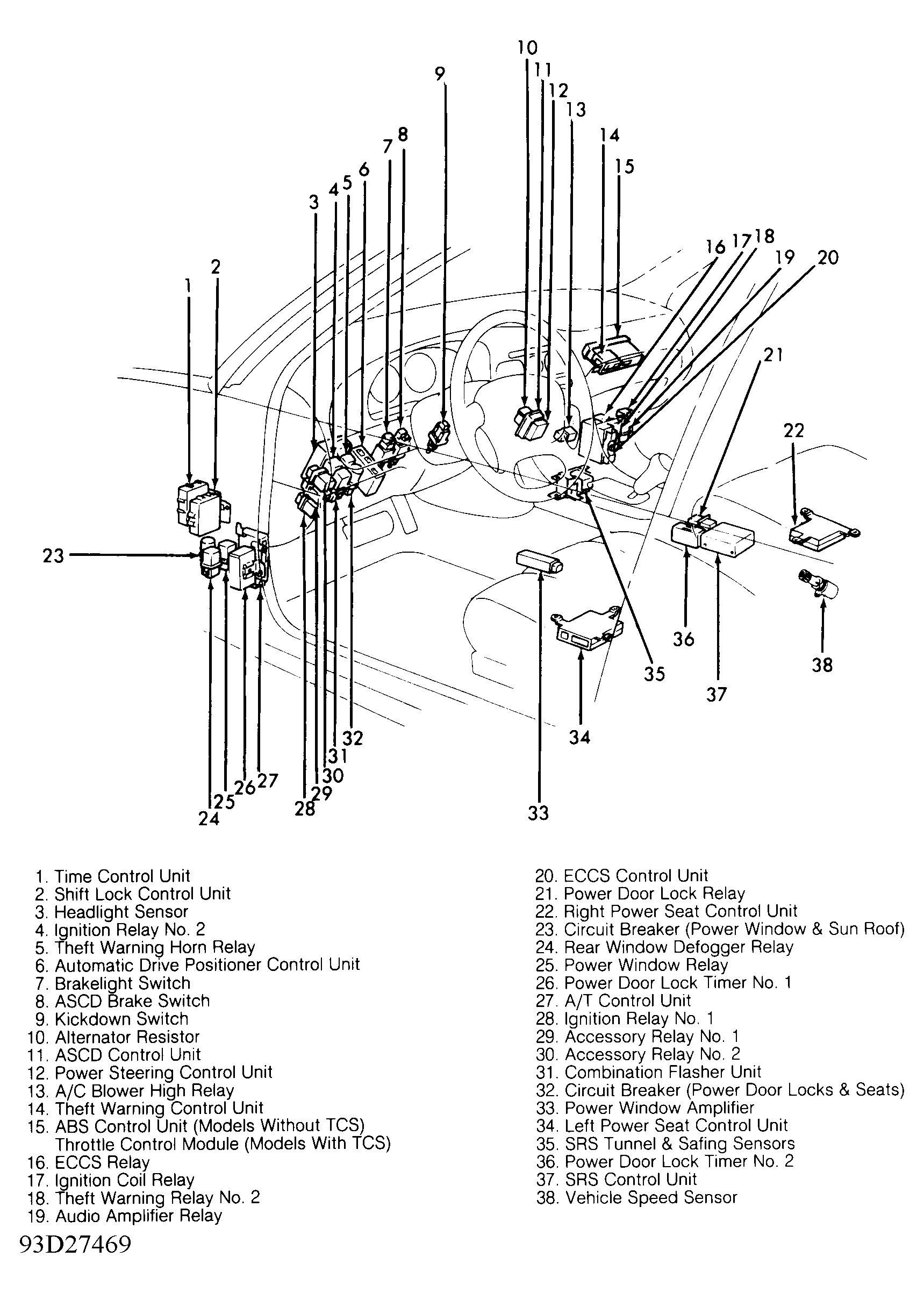

| Power Door Locks & Seats | In relay block, behind left side of dash. See Figure . | |
| Power Window & Sun Roof | Behind left kick panel. See Figure . | |
| Fuel Pump Fuse | In fuse block, to left of steering column. | |
| Fuse Block | Behind access panel, to left of steering column. | |

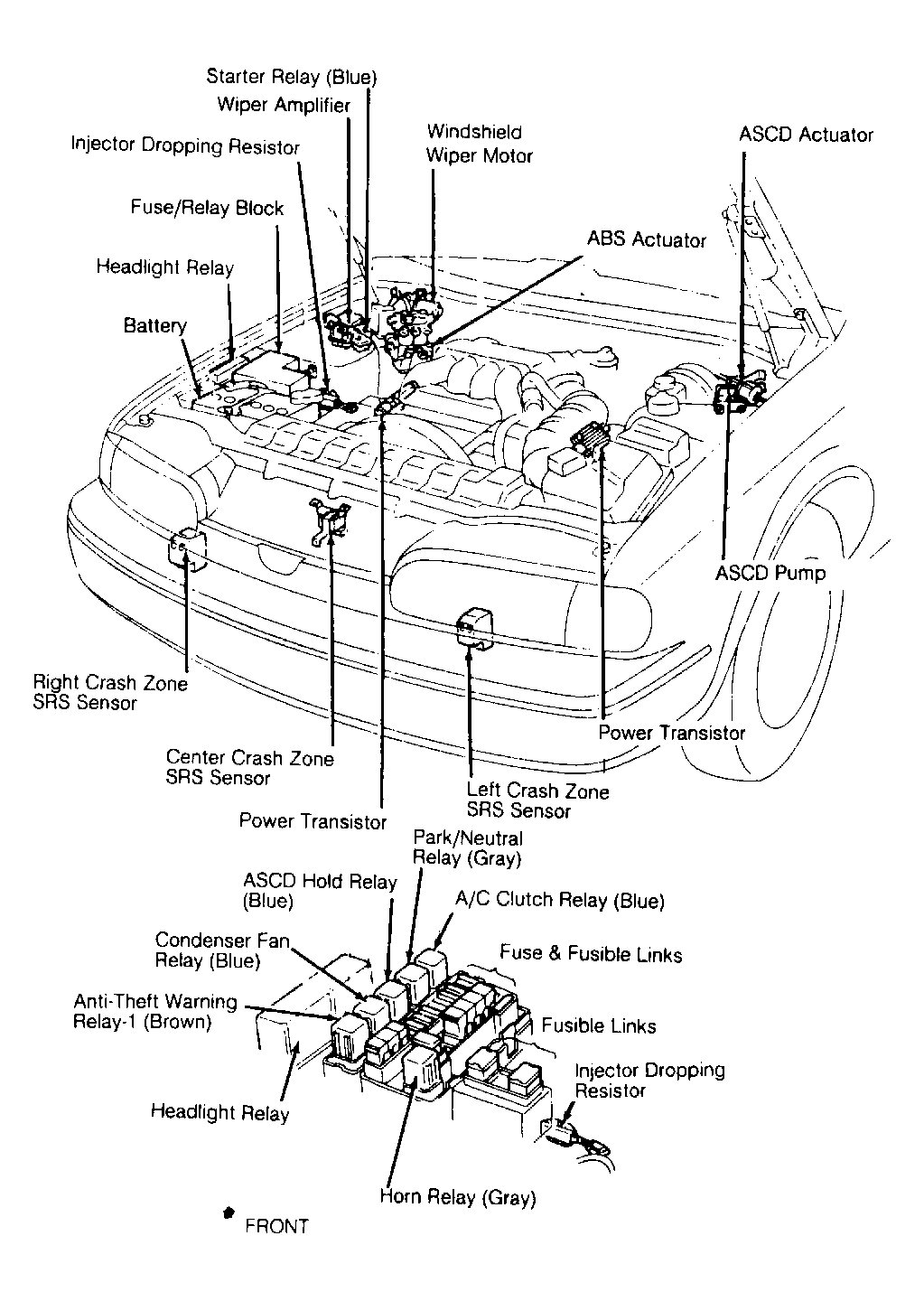

| Fuse/Relay Block (Engine) | In right front side of engine compartment, near battery. See Figure . | |
| Fusible Links | In fuse/relay block, near battery. See Figure . | |
| Relay Block (Passenger) | Behind left side of dash. | |
