| Camshaft Sprocket Bolt |
101-116 (137-157) |
| Centermember Bolt |
57-72 (77-98) |
| Connecting Rod Nut |
| Step 1 |
10-12 (14-16) |
| Step 2 |
|
| Step 3 |
28-33 (38-44) |
| Crankshaft Pulley Bolt |
186-275 (252-373) |

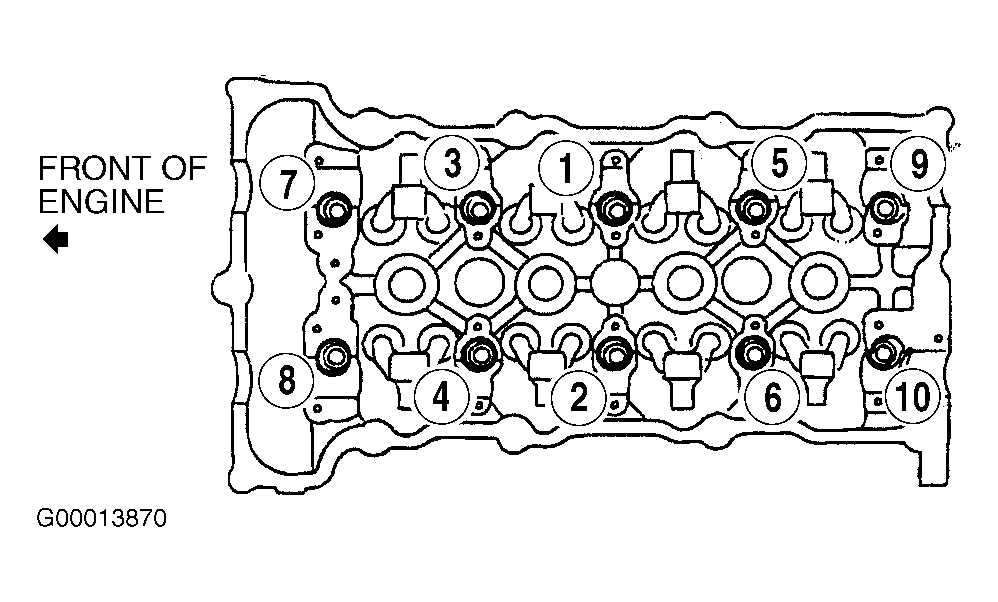

| Cylinder Head Bolt |
| Step 1 |
29 (39) |
| Step 2 |
58 (78) |
| Step 3 |
Loosen All Bolts |
| Step 4 |
25-33 (34-44) |
| Step 5 |
|
| Step 6 |
|
| Engine Mount Bracket Bolt |
54-61 (74-83) |
| Engine Mount-To-Bracket Nut |
46-58 (62-78) |
| Exhaust Manifold Bolt/Nut |
37-47 (49-63) |
| Flywheel/Drive Plate Bolt |
61-69 (83-93) |

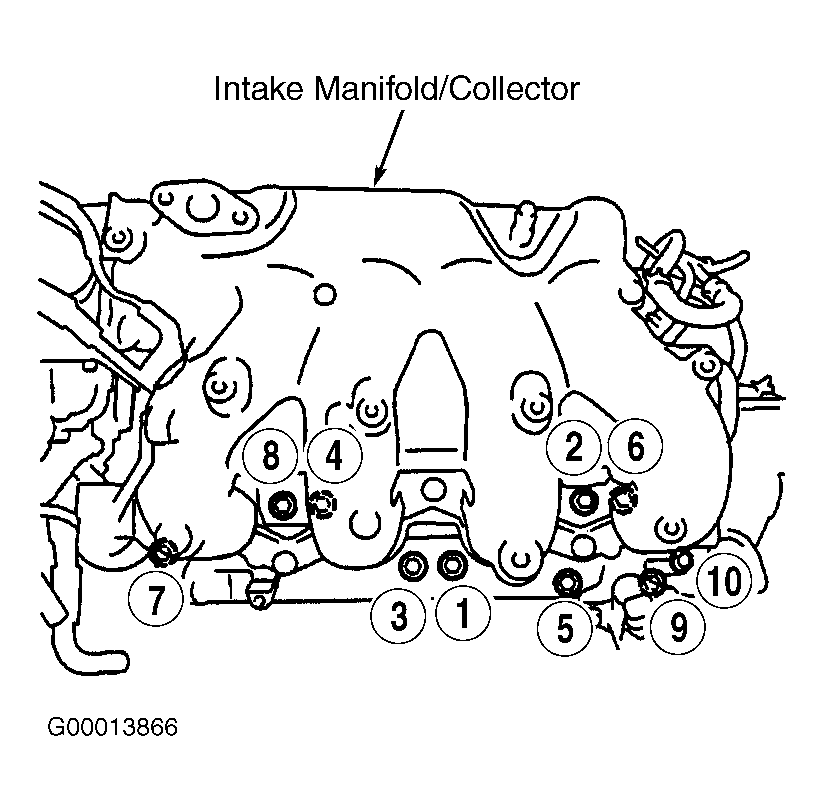

| Intake Manifold/Collector Bolt |
13-18 (18-24) |

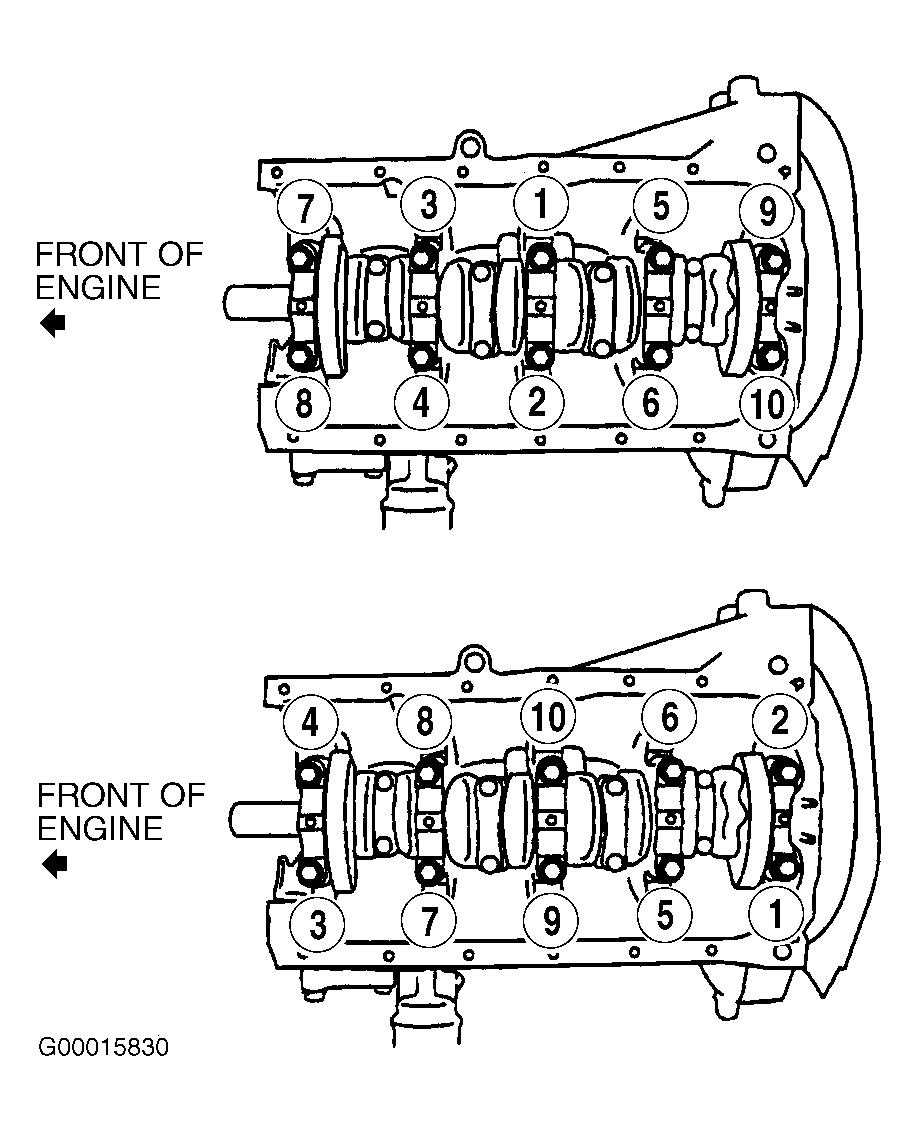

| Main Bearing Cap Bolts |
| Step 1 (Bolts 1-10) |
|
| Step 2 (Bolts 11-20) |
|
| Step 3 (Bolts 1-10) |
Loosen All Bolts |
| Step 4 (Bolts 11-20) |
24-28 (33-38) |
| Step 5 (Bolts 21-30) |
|

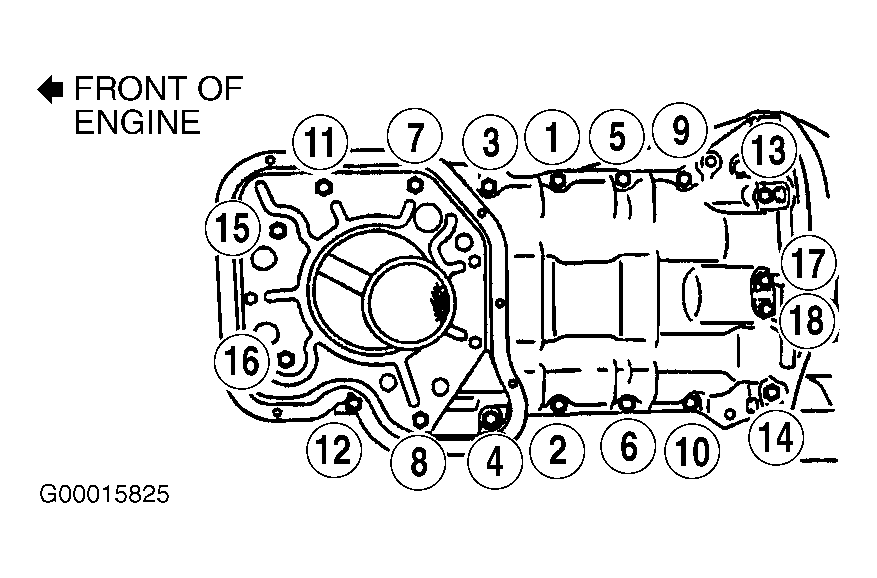

| Oil Pan Bolt (Aluminum) |
| Bolts 1-16 |
12-14 (16-19) |
| Bolts 17 & 18 |
|
| Oil pan Bolt (Steel) |
|
| Throttle Body Retainer Bolt |
| Step 1 |
6.5-7.9 9-10) |
| Step 2 |
13.-15 (18-21) |
| Timing Chain Guide Bolts |
9-14 (13-19) |
| Water Pump Bolt |
12-15 (16-21) |
| INCH Lbs. (N.m) |

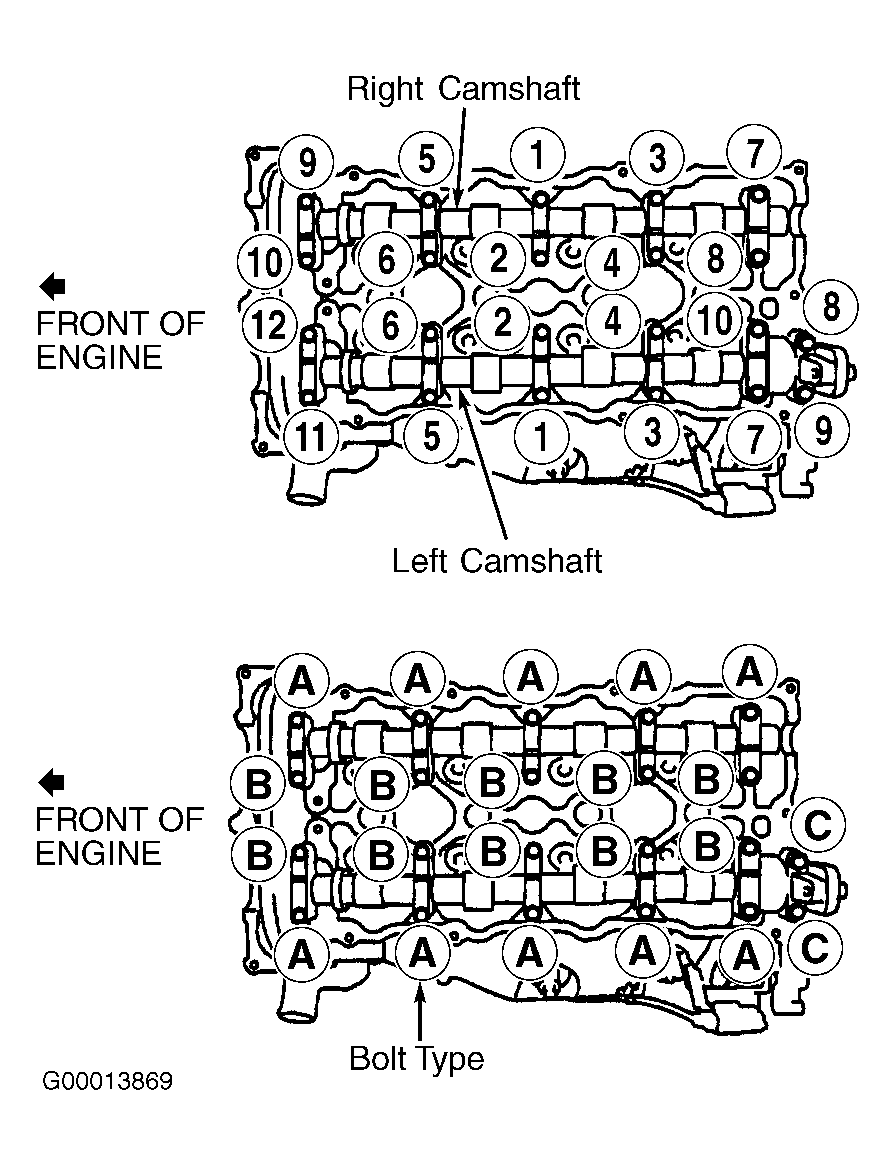

| Camshaft Bolts |
| Step 1 |
| Right Camshaft |
| Bolts 9-10 |
17 (2) |
| Bolts 1-8 |
17 (2) |
| Left Camshaft |
| Bolts 11-12 |
17 (2) |
| Bolts 1-10 |
17 (2) |
| Step 2 |
52 (6) |
| Step 3 |
| Bolt Type "A" & "B" |
|
| Bolt Type "C" |
|
| Front Cover Bolt |
54.6-66.0 (6.4-7.5) |
| Oil Pump Cover Bolt (Long) |
54.6-66.0 (6.4-7.5) |
| Oil Pump Cover Bolts (Short) |
33.0-44.3 (3.7-5.0) |
| Rear Oil Seal Retainer Bolt |
55.6-73.8 (6.3-8.3) |

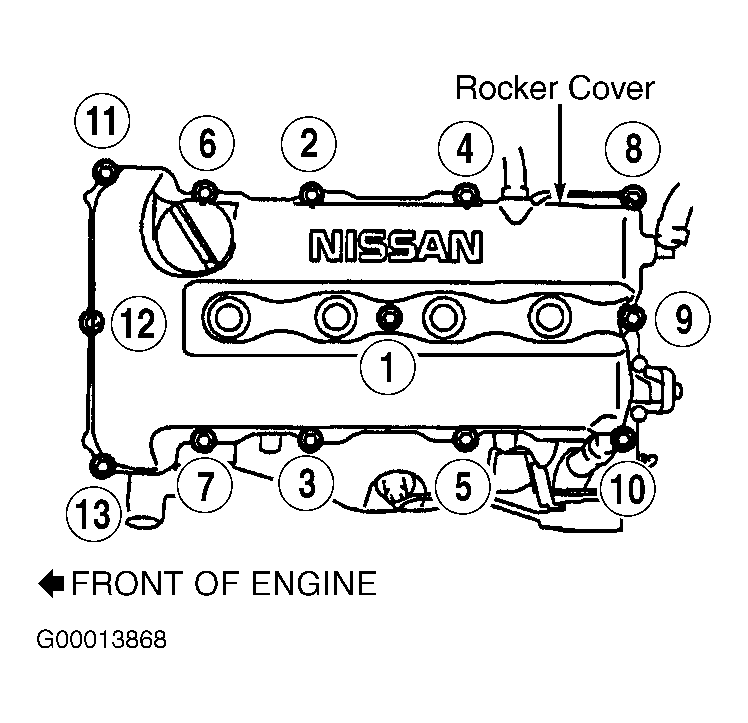

| Rocker Cover Bolt |
| Bolts 1, 10, 11, 13, & 8 |
69-87 (8-10) |
| Bolts 1-13 |
69-87 (8-10) |
| Timing Chain Tensioner Bolt/Nut |
55.6-73.8 (6.3-8.3) |
