Component Locations

COMPONENT LOCATIONS

Component Location
ASCD Actuator Next To Brake Booster
ASCD Brake Switch (1) On Bracket Above Brake Pedal
ASCD Control Unit (2) Under Instrument Panel, Next To Steering Column
ASCD Hold Unit (2) Under Instrument Panel, Next To Steering Column
ASCD MAIN Switch Left Side Of Instrument Panel
ASCD Steering Switch Mounted On Steering Wheel
Data Link Connector Behind Cover Of Driver-Side Knee Bolster
Park Neutral Position (PNP) Relay (3) Next To Battery
Stoplight Switch On Bracket Above Brake Pedal
Vacuum Pump Next To ASCD Actuator
Vehicle Speed Sensor On Transmission Extension Housing
(1) See Fig 1 .
(2) See Fig 2 .
(3) See Fig 3 .
Fig 1: Identifying ASCD Brake Switch Location
G00012462Courtesy of NISSAN MOTOR CO., U.S.A.

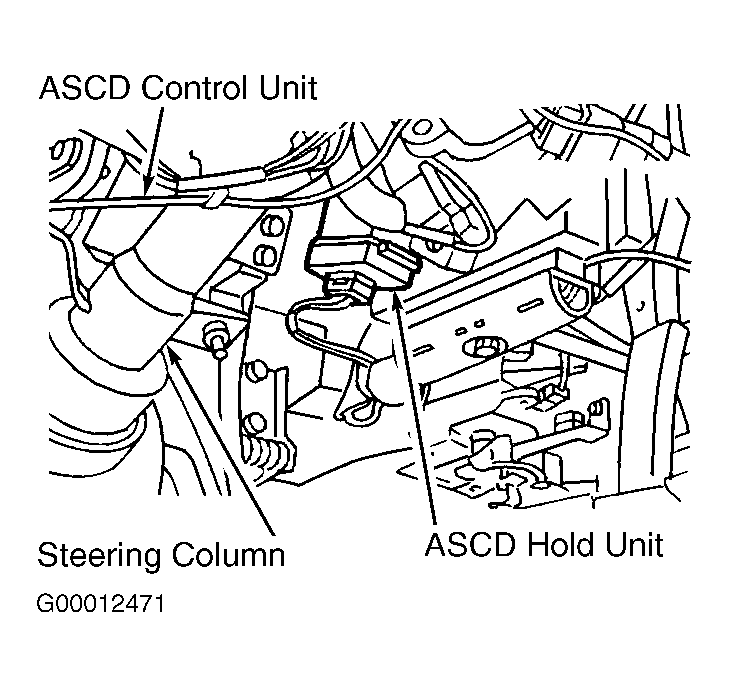

Fig 2: Identifying ASCD Control Unit Location
G00012471Courtesy of NISSAN MOTOR CO., U.S.A.

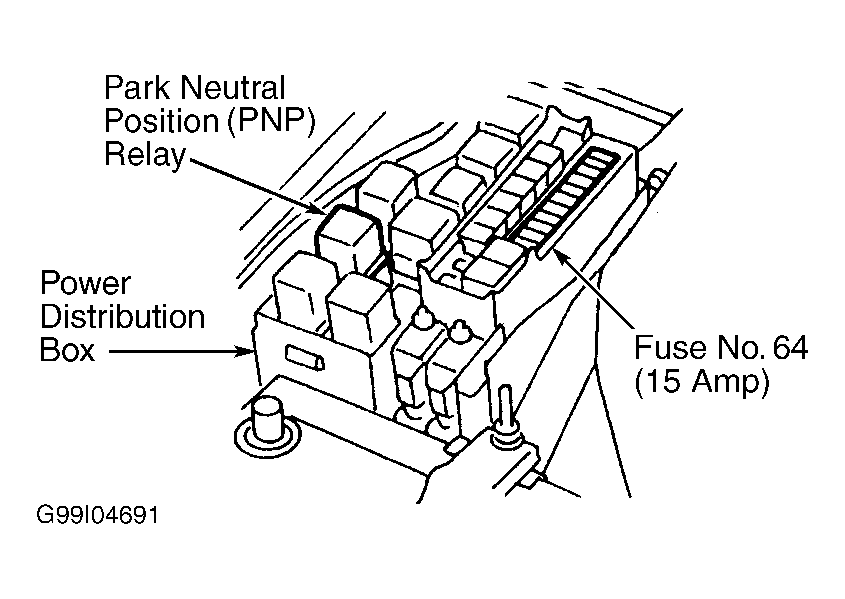

Fig 3: Identifying PNP Relay Location
G99I04691Courtesy of NISSAN MOTOR CO., U.S.A.
