Vacuum Diagrams: Introduction: Altima

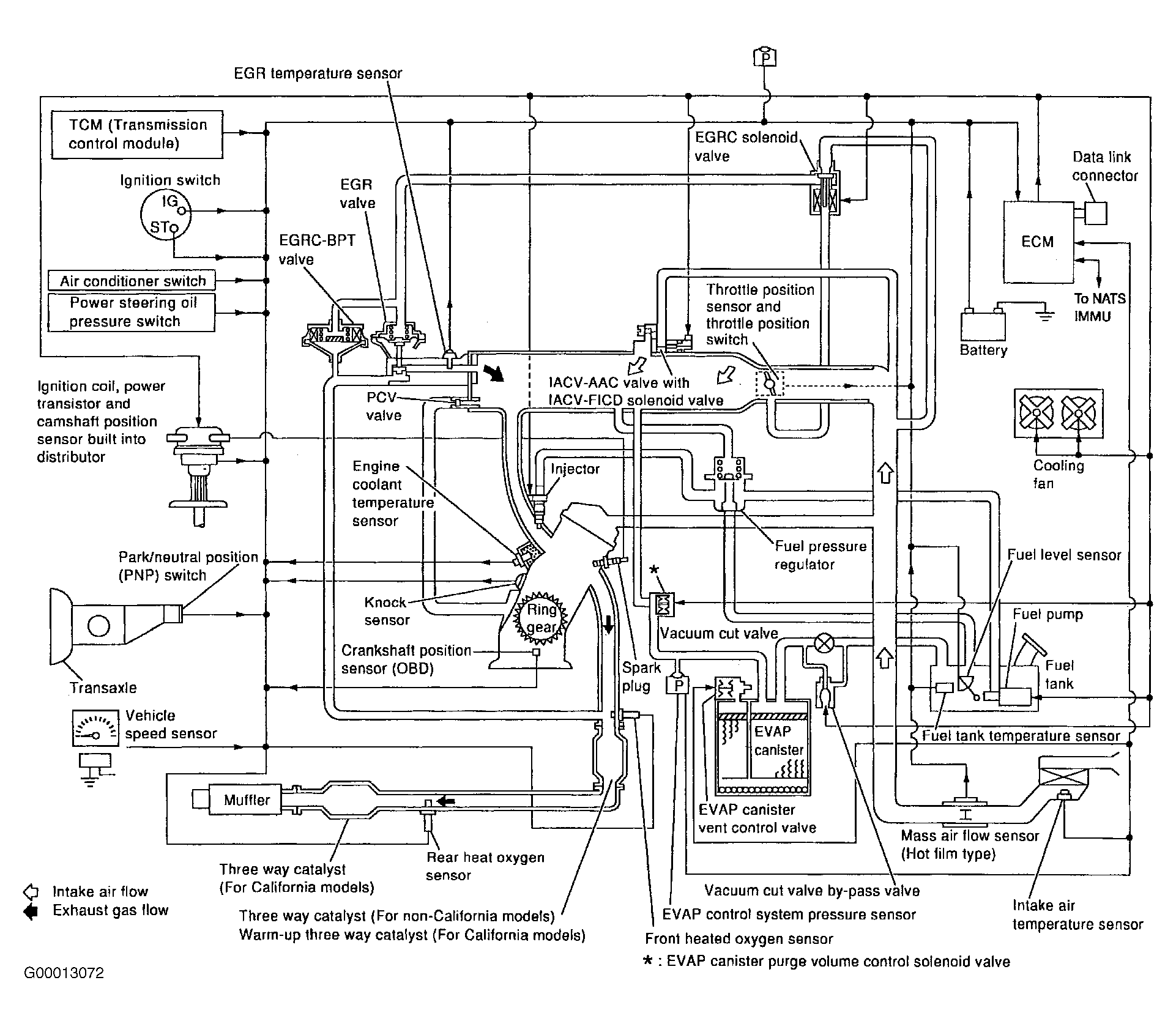

Fig 1: Engine Control System Vacuum Diagram (Altima)
Courtesy of NISSAN MOTOR CO., U.S.A.

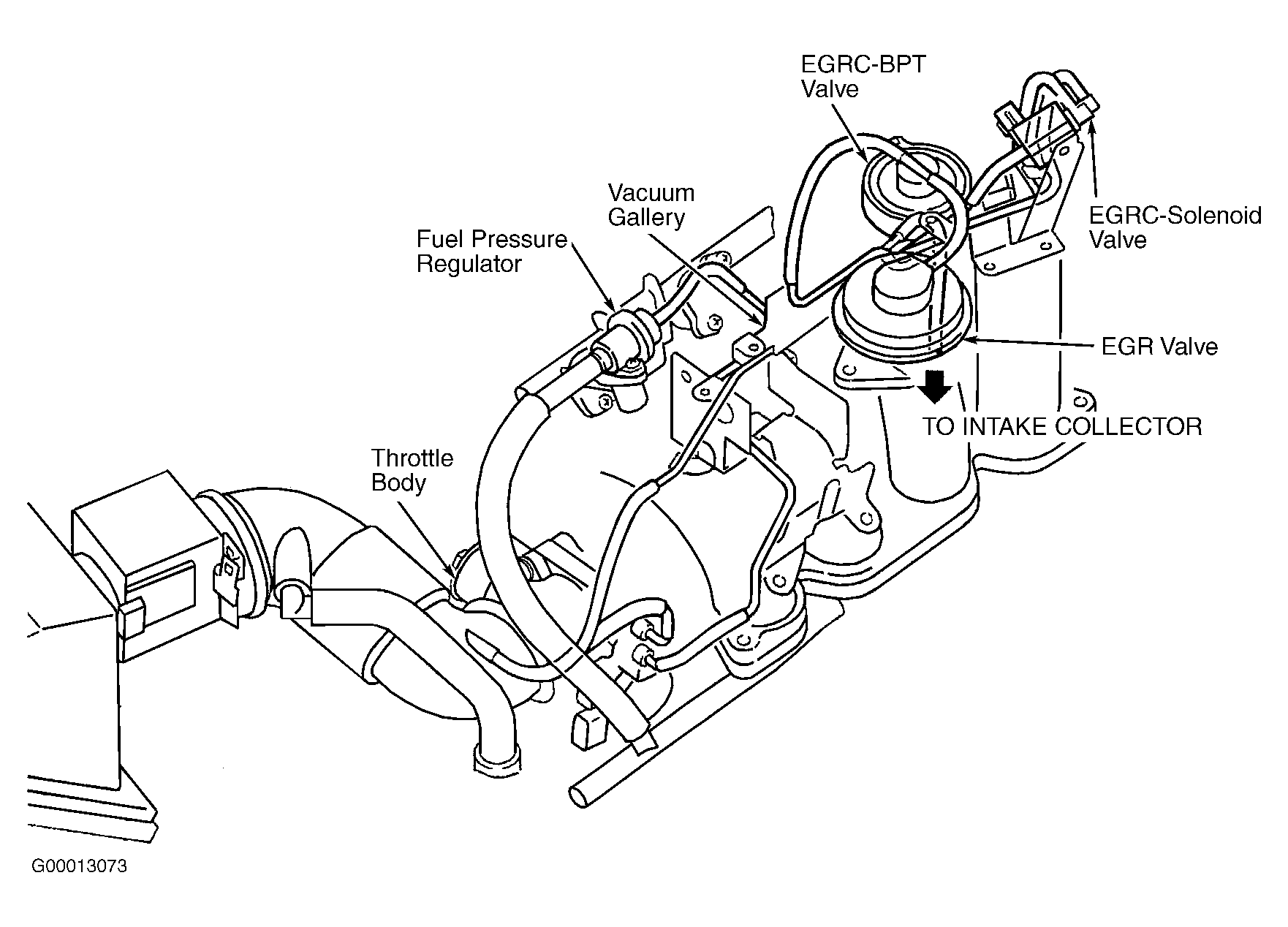

Fig 2: Identifying Engine Vacuum Hose Routing (Altima)
Courtesy of NISSAN MOTOR CO., U.S.A.

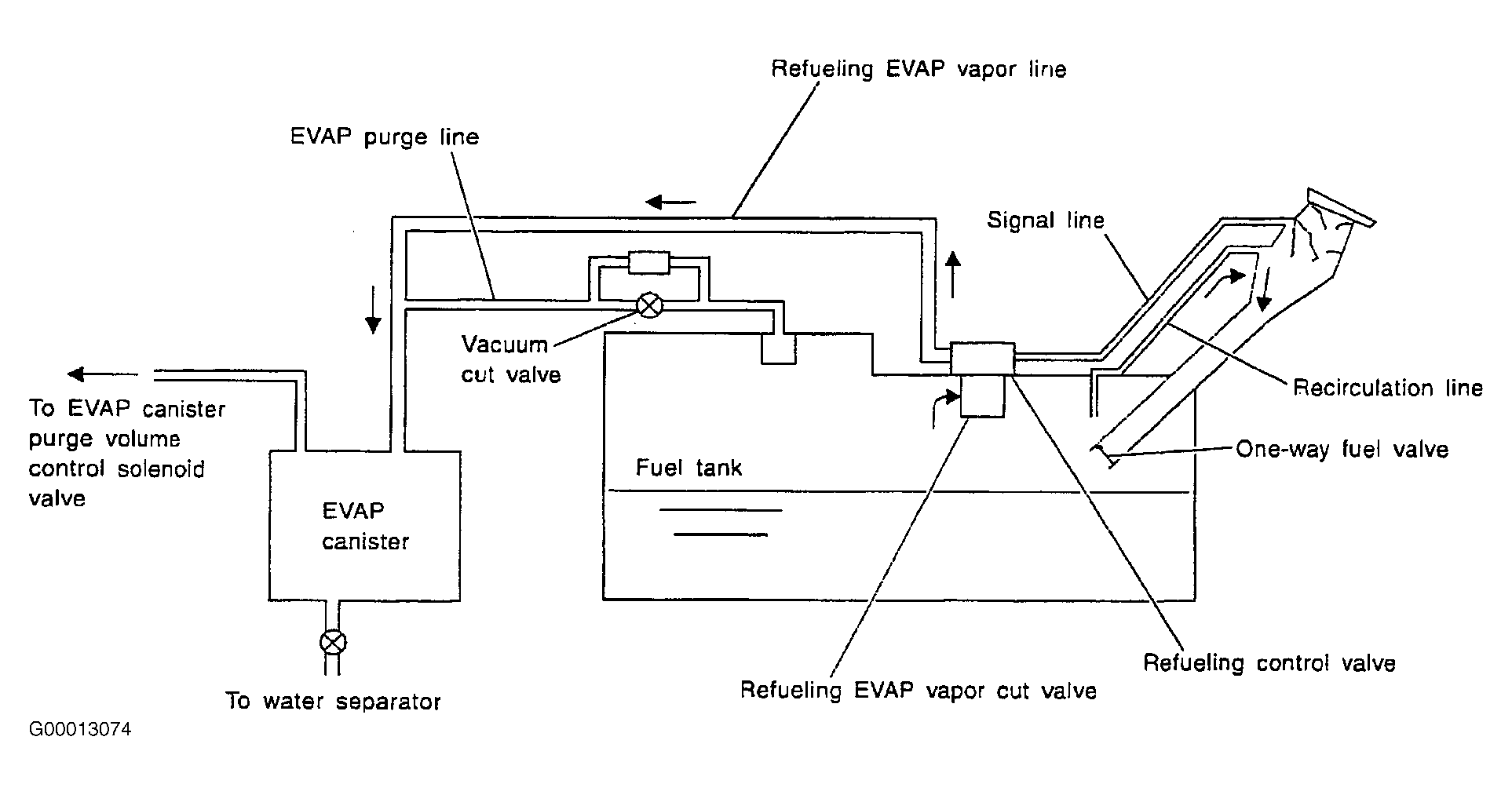

Fig 3: On Board Refueling Vapor Recovery (ORVR) Vacuum Diagram (Altima)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
