TCS Off Switch

Check continuity between terminals as shown.

TCS OFF SWITCH CONDITION AND CONTINUITY SPECIFICATIONS

SWITCH condition Continuity existence
Pushed Yes
Released No

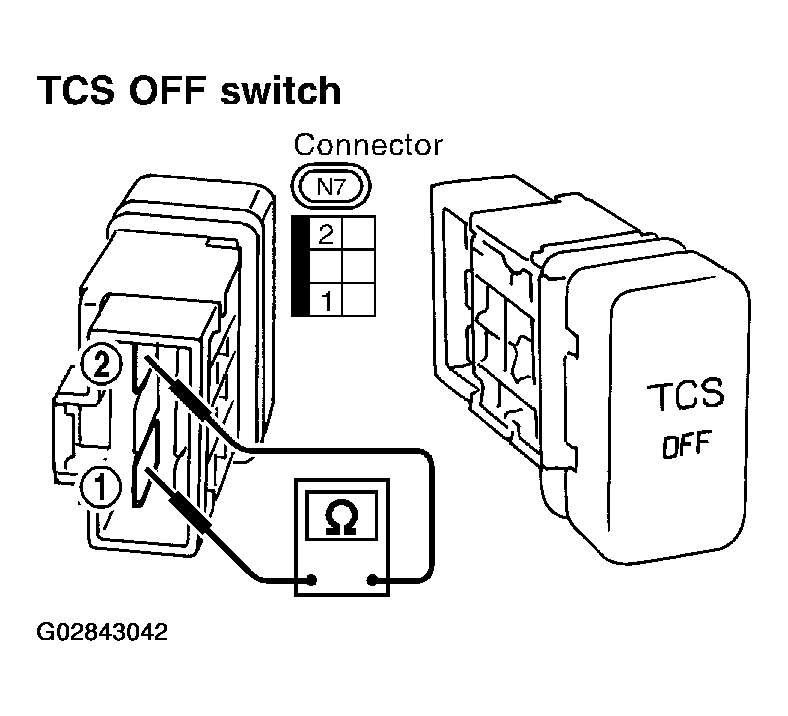

Fig 1: Checking Continuity Between TCS OFF Switch Terminals
G02843042
