Checking Fluid Level

Check fluid level with dipstick on reservoir cap. Use "HOT" range at fluid temperatures from 50 to 80°C (122 to 176°F). Use "COLD" range at fluid temperatures from 0 to 30°C (32 to 86°F).

CAUTION:
  • Do not overfill.
  • Recommended fluid is Genuine Nissan PSF II or equivalent.

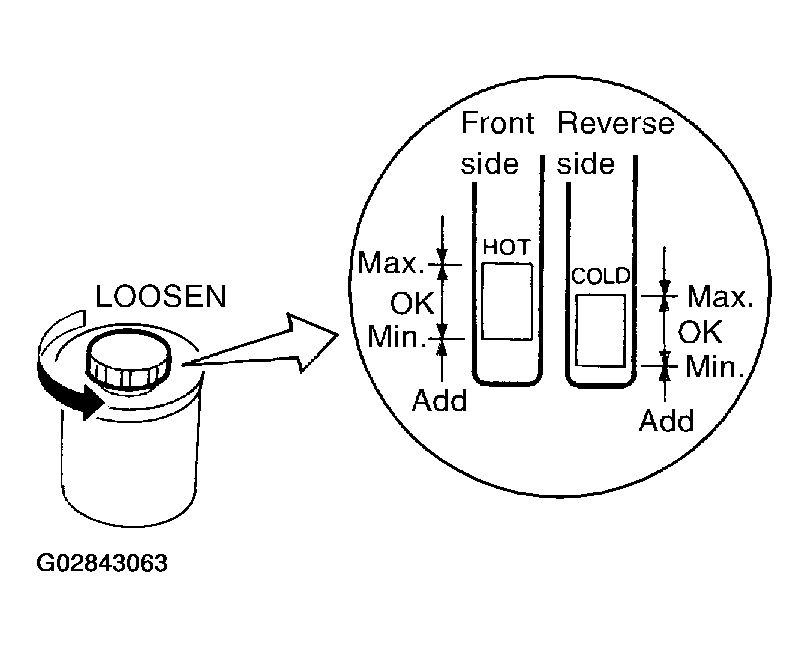

    Fig 1: Checking Fluid Level
    G02843063
