Remote Controller Id Set Up With Consult-II

NOTE: If a remote controller is lost, the ID code of the lost remote controller must be erased to prevent unauthorized use. When the ID code of a lost remote controller is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.

Turn ignition switch "OFF".
Connect CONSULT-II to the data link connector.

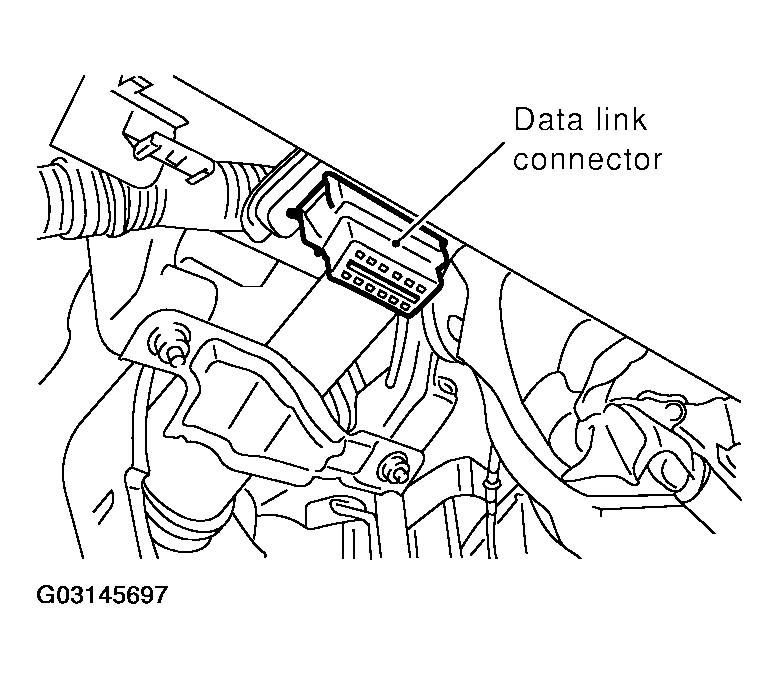

Fig 1: Locating Data Link Connector
Turn ignition switch "ON".
Touch "START".

Fig 2: Identifying CONSULT-II Screen Display (ID Code Entry Procedure) (1 Of 5)
Touch "SMART ENTRANCE".

Fig 3: Identifying CONSULT-II Screen Display (ID Code Entry Procedure) (2 Of 5)
Touch "MULTI REMOTE ENT".

Fig 4: Identifying CONSULT-II Screen Display (ID Code Entry Procedure) (3 Of 5)
Touch "WORK SUPPORT".

Fig 5: Identifying CONSULT-II Screen Display (ID Code Entry Procedure) (4 Of 5)
The items are shown on the figure at left can be set up. "REMO CONT ID CONFIR"
Use this mode to confirm if a remote controller ID code is registered or not.

"REMO CONT ID REGIST"

Use this mode to register a remote controller ID code.

Fig 6: Identifying CONSULT-II Screen Display (ID Code Entry Procedure) (5 Of 5)

NOTE: Register the ID code when remote controller or smart entrance control unit is replaced, or when additional remote controller is required.

"REMO CONT ID ERASUR"

Use this mode to erase a remote controller ID code.
