Traction Control: Anti-Lock: Description: Schematic

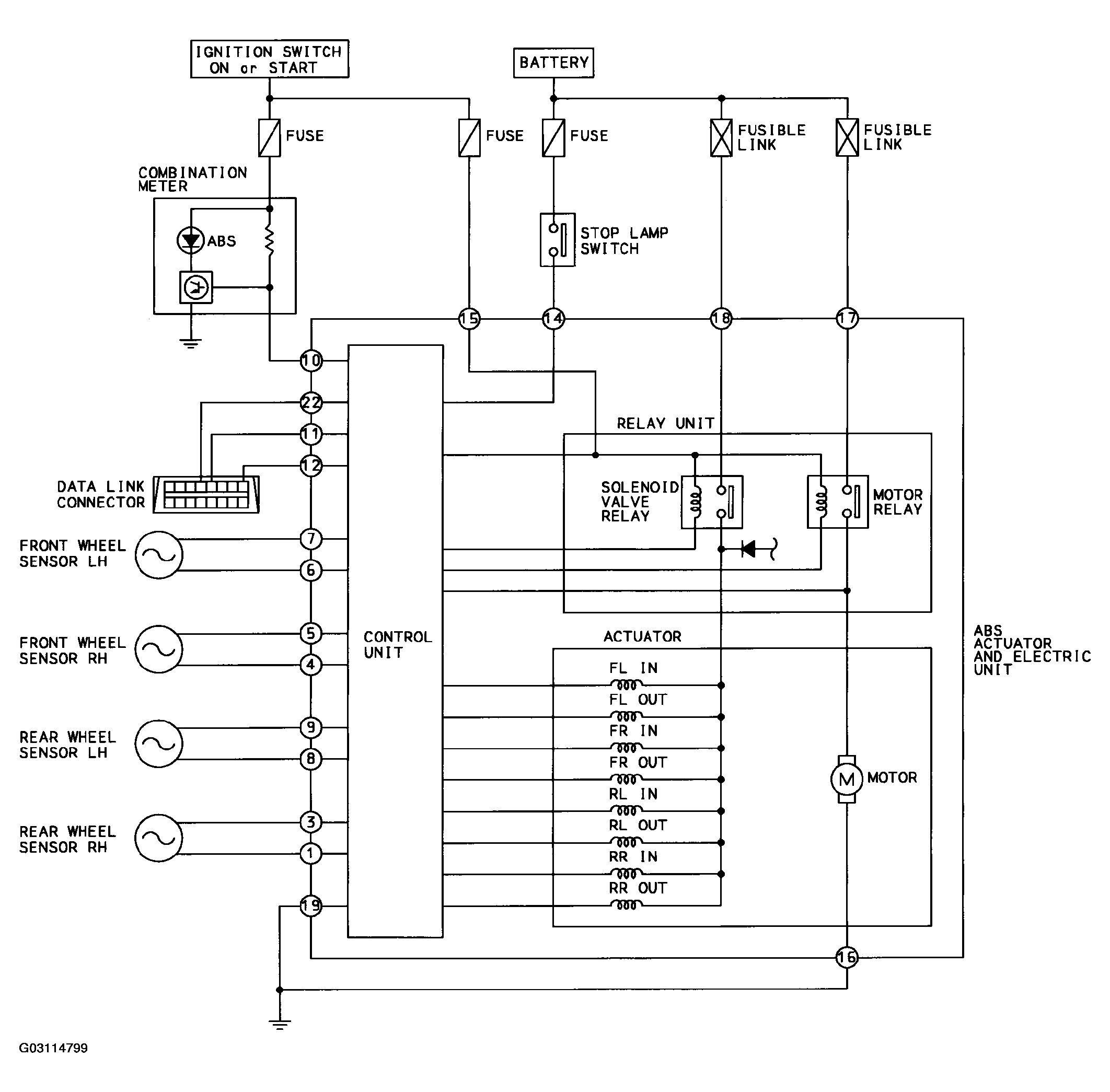

Fig 1: ABS Schematic Diagram

G03114799

Courtesy of NISSAN MOTOR CO., U.S.A.
