Diagnostic Procedure 2

For diagnostic procedure 2, see Fig 1 .

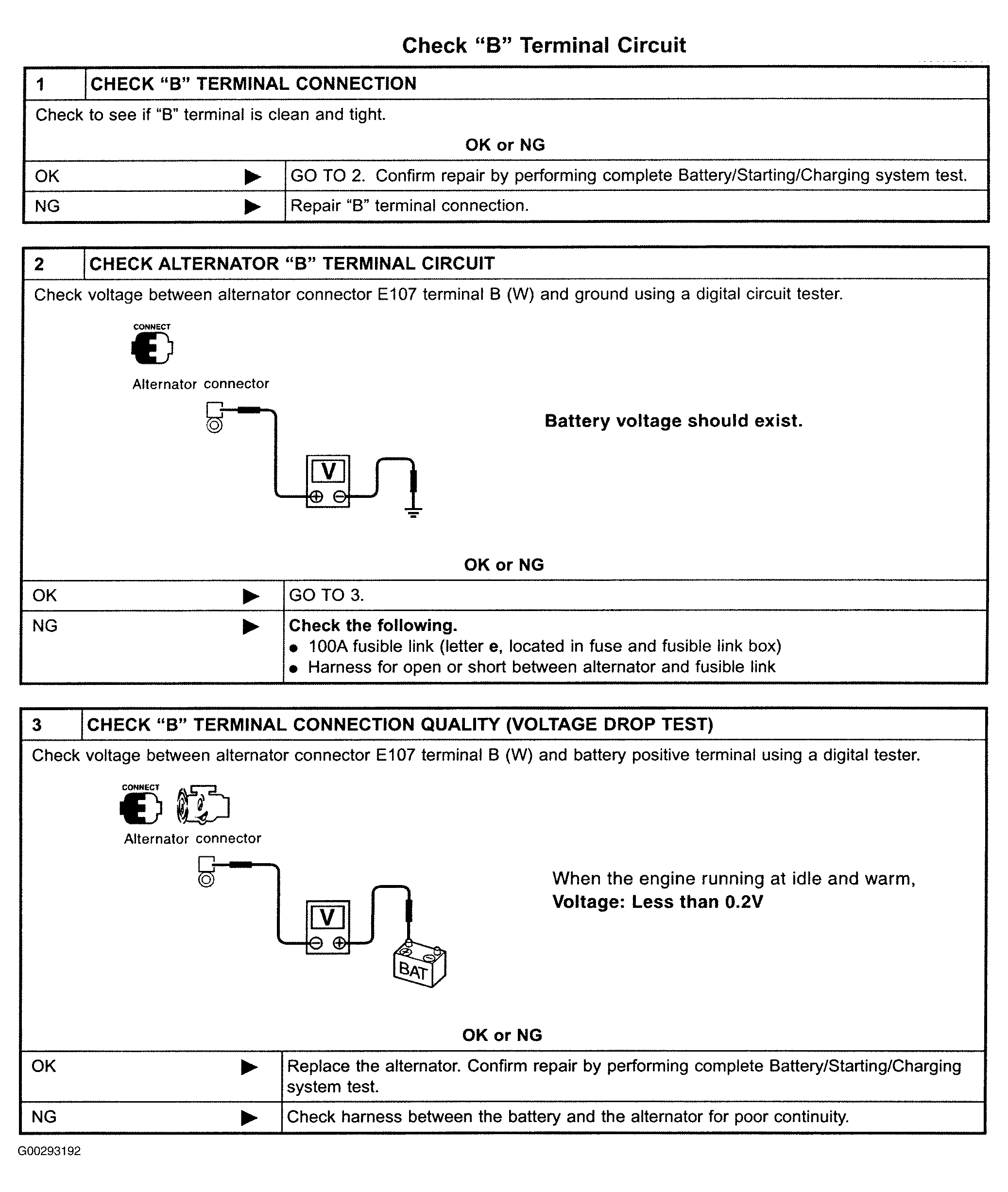

Fig 1: Diagnostic Procedure 2
G00293192Courtesy of NISSAN MOTOR CO., U.S.A.
