Engine Compartment: Measurement

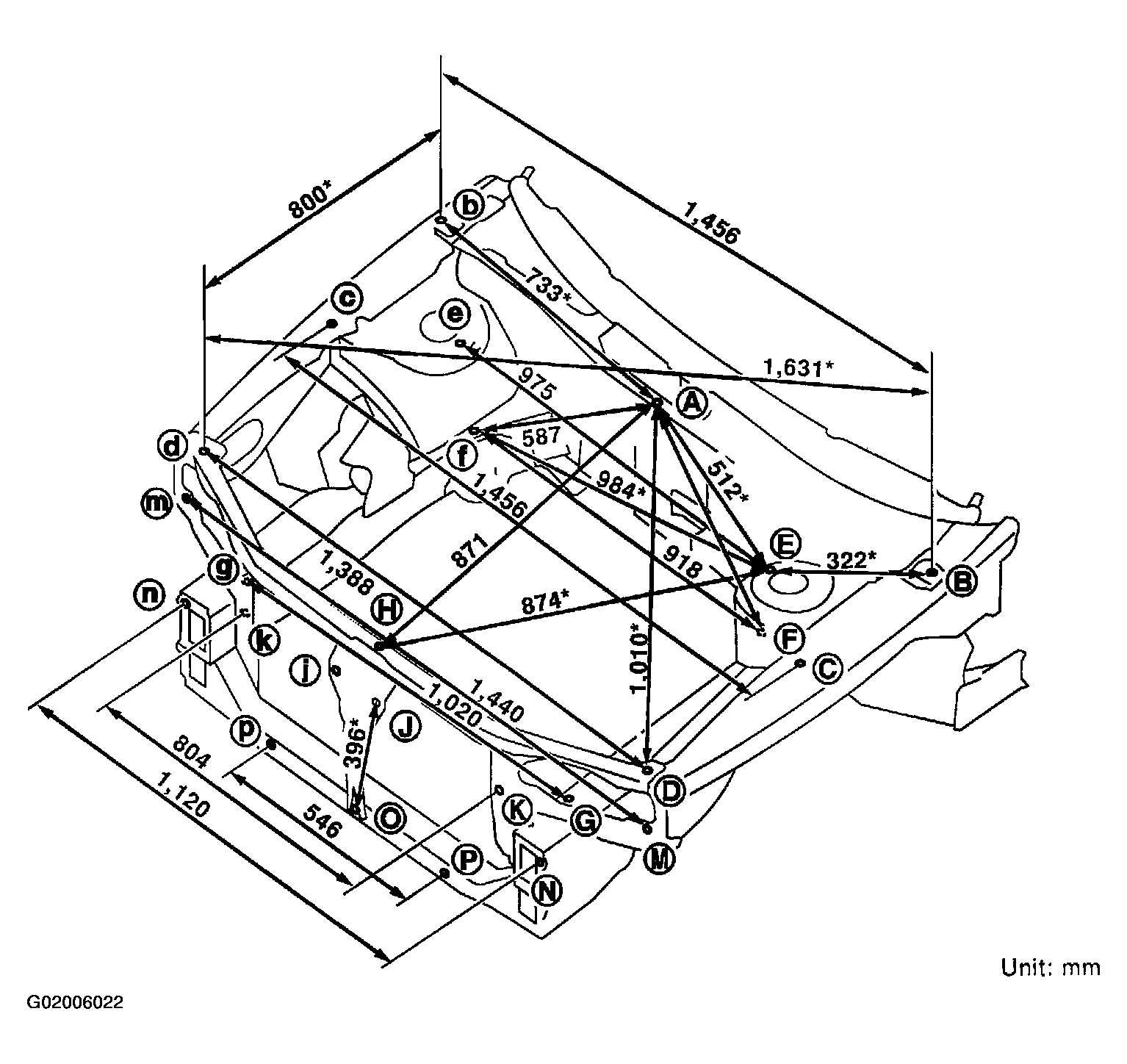

Fig 1: Measuring Engine Compartment
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
