Automatic Speed Control Device (ASCD)
>>
CONSULT-II Data Monitor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
CONSULT-II Data Monitor

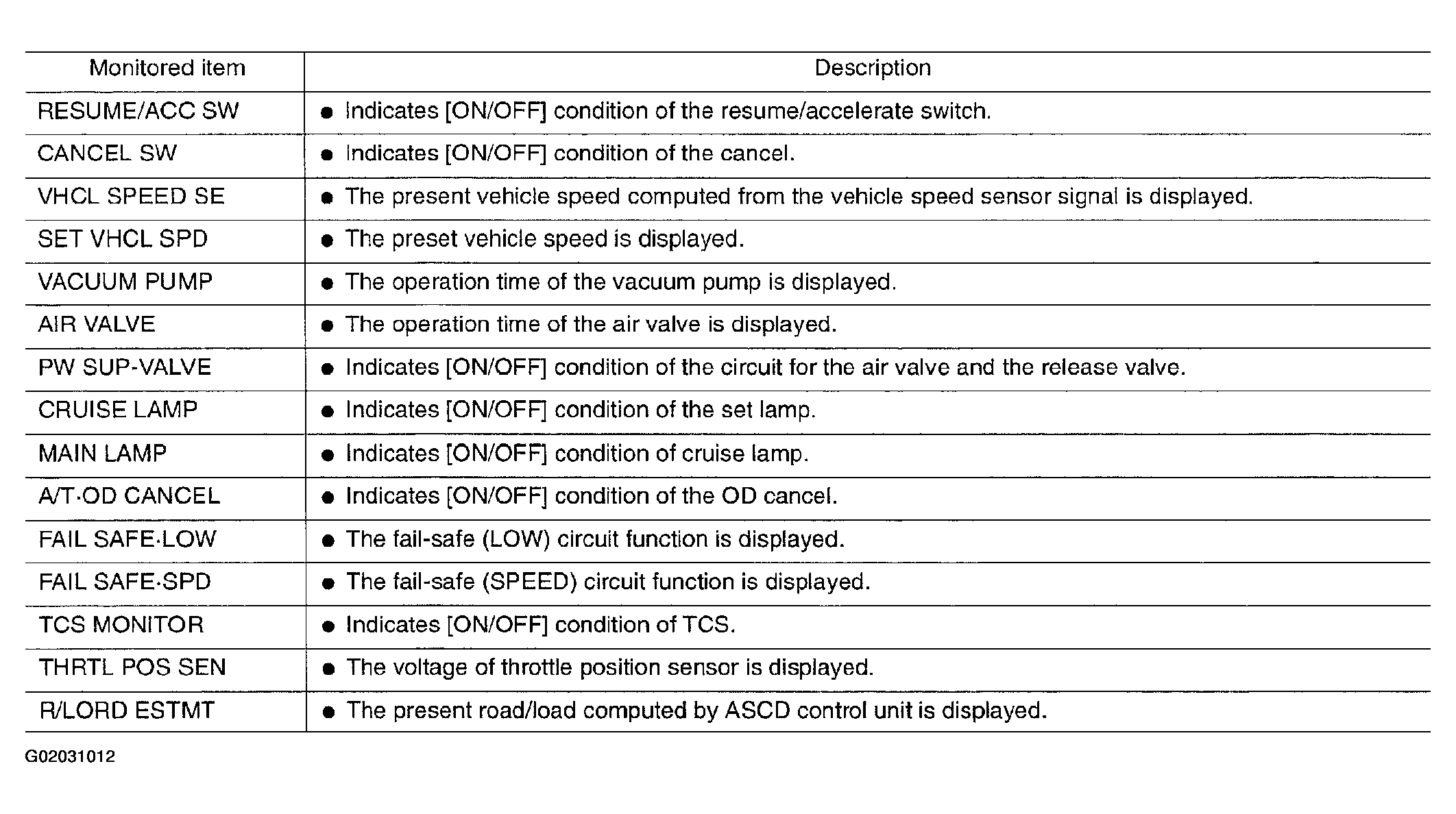

Fig 1: Monitor Item Description (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

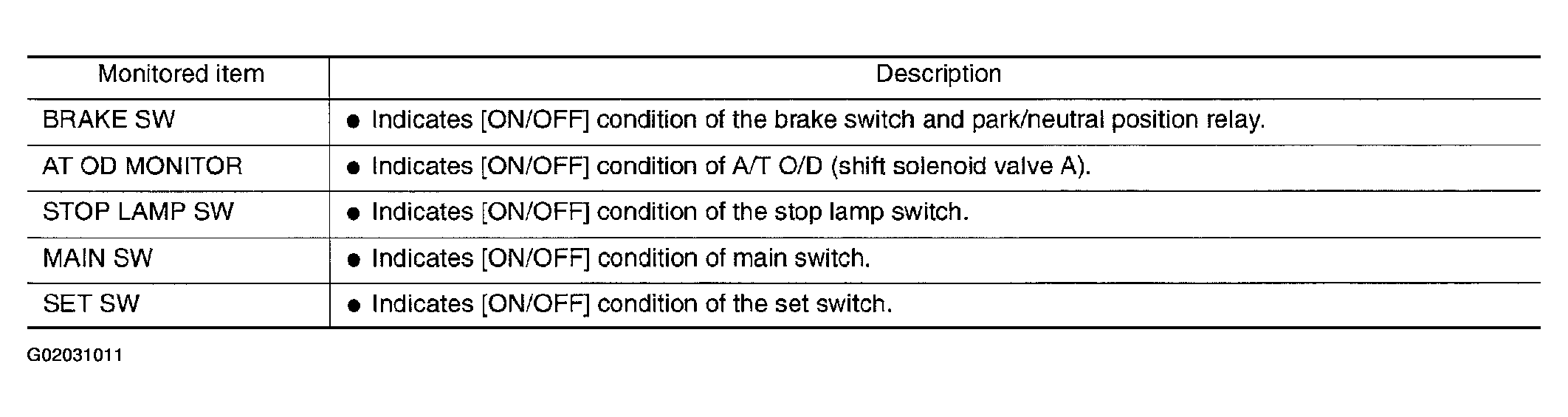

Fig 2: Monitor Item Description (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
